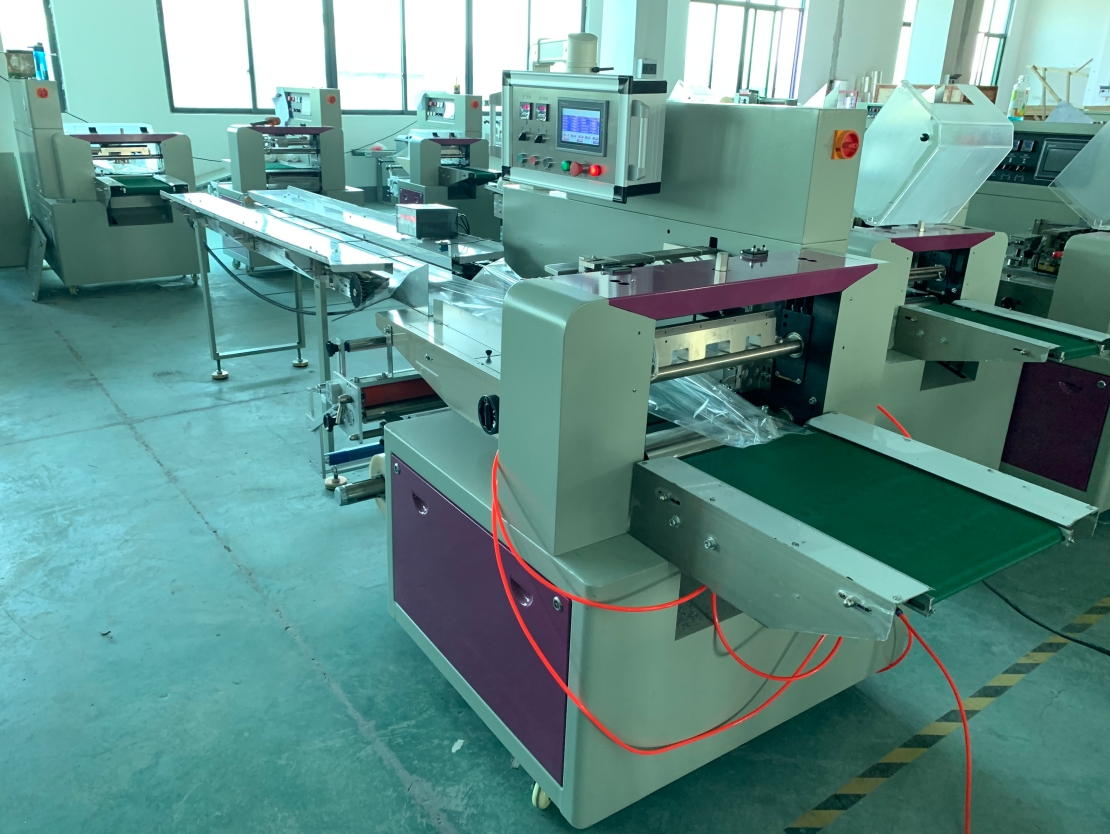

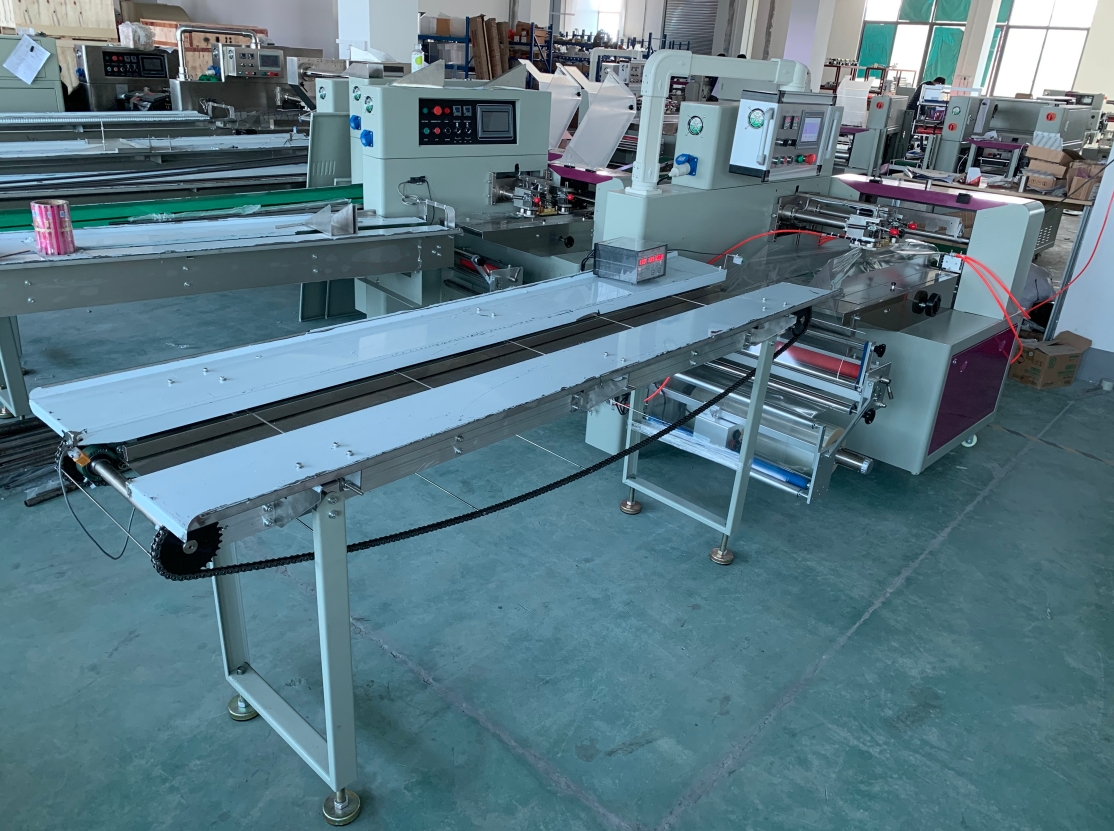

10 Sachets Cake Packaging Machinery
Product Code:UMEO-700X
CONTACT US
Share:
Description
- Dual frequency conversion control, bag length is random as setting.
- Interface features for easy setting and operation.
- Self failure diagnosisfor clear failure display.
- High sensitivity photocelleye tracking,numerical input for sealing and position accurately.
- Temperature independent PID controlto suitable for different packaging materials.
- Positioned stop function, without sticking knife and reduce wastage.
- Driving systemfor reliable working and convenient maintenance.
Video
Specification
| Model | UMEO-700X | UMEO-800X |
| Bag Length | Not less 150mm | Not less 150mm |
| Bag Width | 100-280 mm | 100-340 mm |
| Product Height ( Max.) | 10 mm | 100 mm |
| Film Roll Dia （Max.） | 320 mm | |
| Film Width (Max.) | 700 mm | 800 mm |
| Packing Speed | 30-110 packet / min | 30-100 packet /min |
| Power | 220V AC 50HZ,single phase,2.8Kw | 220V AC 50HZ,single phase,2.6Kw |
| Packaging Film | Laminated film (OPP/CPP,OPP/CE,PET/PE,Aluminium foil,PE/PE etc) | |
| Dimension | 4060(L)x980(W)x1670(H) mm | 4080(L)x1020(W)x1695(H) mm |
| Net Weight | 630 Kg | 695 Kg |
| Optional | Air filling device / Linking device / Ethyl alcohol device | |
