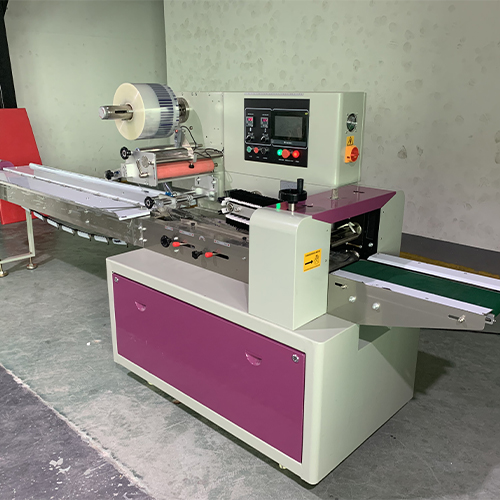

Bread Horizontal Packing Machinery
Product Code:UMEO-350
CONTACT US
Share:
Description
Bread Horizontal Packing Machinery
- Dual frequency conversion control, bag length is random as setting.
- Interface features for easy setting and operation.
- Self failure diagnosis for clear failure display.
- High sensitivity photocell eye tracking,numerical input for sealing and position accurately.
- Temperature independent PID control to suitable for different packaging materials
- Positioned stop function, without sticking knife and reduce wastage.
- Driving system for reliable working and convenient maintenance.
Video
Specification
| Model | UMEO-250 | UMEO-350 |
| Bag Length | 65-190 mm / 120-280 mm | 90-220 mm / 150-330 mm |
| Bag Width | 30-110 mm | 50-160 mm |
| Product Height ( Max.) | 55 mm | 60 mm |
| Film Roll Dia （Max.） | 320 mm | |
| Film Width (Max.) | 250 mm | 350 mm |
| Packing Speed | 40-230 packet / min | 40-180 packet /min |
| Power | 220V AC 50HZ,single phase,2.4Kw | 220V AC 50HZ,single phase,2.6Kw |
| Packaging Film | Laminated film (OPP/CPP,OPP/CE,PET/PE,Aluminium foil,PE/PE etc) | |
| Dimension | 3770(L)x670(W)x1450(H) mm | 4020(L)x770(W)x1450(H) mm |
| Net Weight | 410 Kg | 495 Kg |
| Optional | Air filling device / Linking device / Ethyl alcohol device | |
