Quad Seal Pouch Coffee Bean Packing Machine
Quad seal pouch coffee bean packing machine is one of the most welcome machines,which is cost effective and provide more billboard space for your product.The style pouches are four sides to the quad style,allowing for a better presentation one the shelf. Quad pouches are great for transitioning from box packaging to flexible packaging.The packing machines deliver premium,shelf-stable packaging ideal for whole coffee beans,combining high-barrier materials,degassing valves, and precision filling.They suit brands prioritizing shelt impact and product freshness.
CONTACT US
DOWNLOAD
Share:
Description
The quad seal pouch coffee bean packing machine is multi-functional from feeding,weighing,valve inject,bag forming,
filling,sealing & cutting from roll foil type which can significantly reduce costs;the whole set includes six parts: quad seal
VFFS machine,two head linear weigher,z type elevator,supporting platform,output conveyor and degassing valve applocattor.
- Imported PLC with colorful touch screen control system,multilingual function,easy to operate.
- Imported servo and sensor for film feeding and precise positioning,working steadily.
- Double belt for film feeding structure for stably and precise operation.
- Multifunctional alarm function to reduce wastage,safe operation.
- Intelligent temperature control system,automatically rectification function.
Video
Specifications
| Model | UMEO-620DT | UMEO-520DT |
| Bag Length | 150-400mm | 100-350mm |
| Front Width | 80-250mm | 50-200mm |
| Side Width | 40-150mm | 35-100mm |
| Iron Width | 5-10mm | 5-10mm |
| Film Width (Max.) | 620mm | 520mm |
| Packing Speed | 15-25 packet/min | 15-30 packet/min |
| Gas Consumption | 0.8m³/min | 0.60m³/min |
| Power | 220V/ 380V, AC 50/60HZ, 1P/3P,4.8Kw / 4.2KW | |
| Packaging Film | laminated film (OPP/CPP,OPP/CE,PET/PE,Aluminium foil,PE/PE etc) | |
| Net Weight | 1795Kg | 1680Kg |

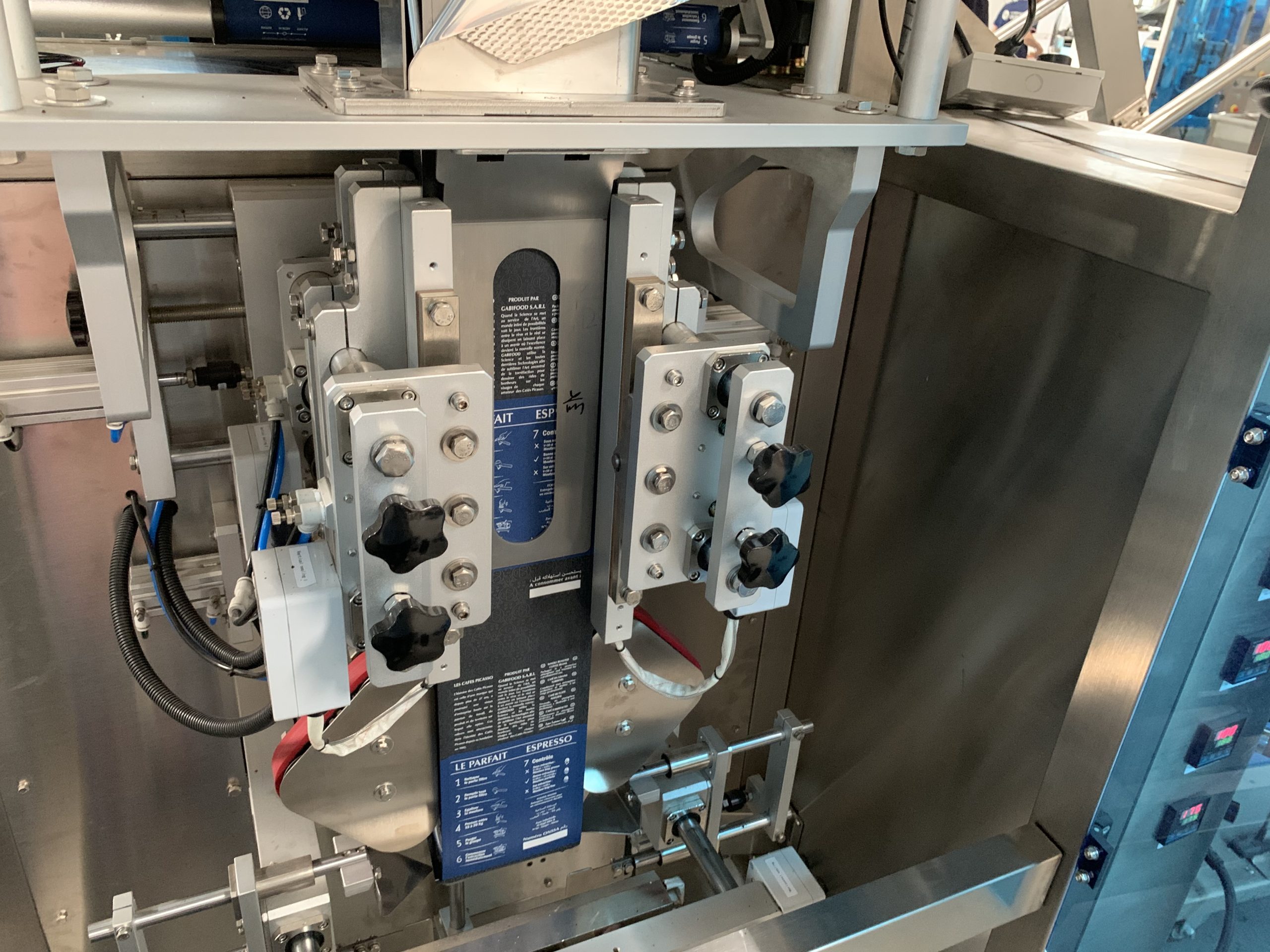

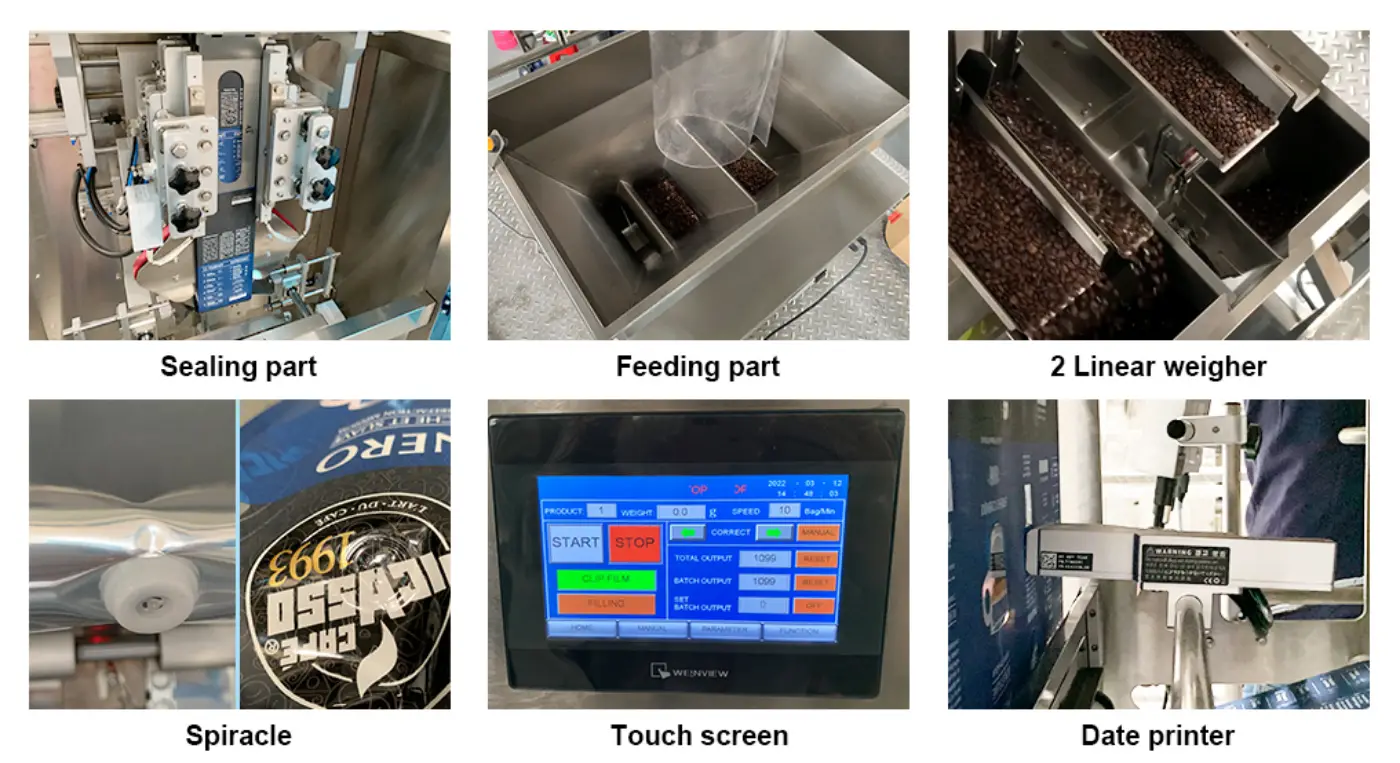

Machine Details
UMEO always pays more attention to the machine every part to make sure every client get get the best quality packaging
machinery to increase your package capacity.

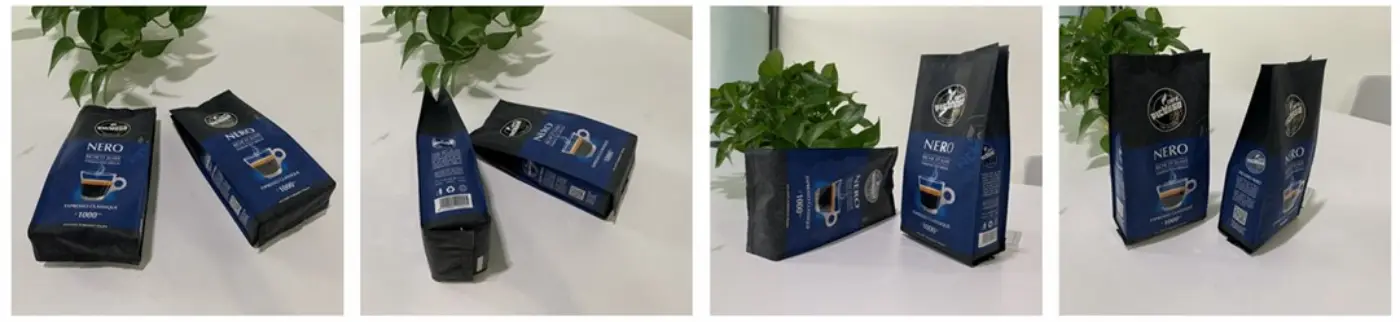

Sample Bag
