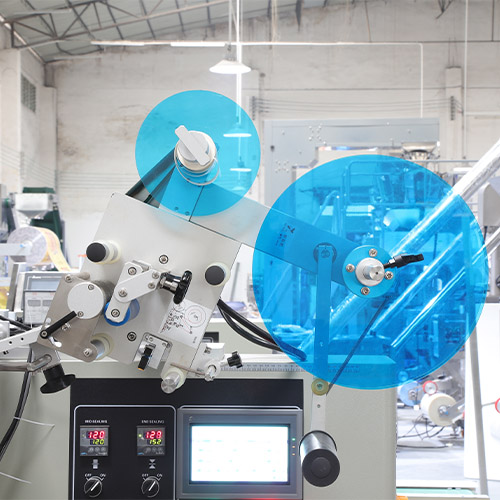

Horizontal Labeling Packaging Machine
Product Code:UMEO-600
CONTACT US
Share:
Description
Horizontal Labeling Packaging Machine
- Dual frequency conversion control, bag length is random as setting.
- Interface features for easy setting and operation.
- Self failure diagnosis for clear failure display.
- High sensitivity photocell eye tracking,numerical input for sealing and position accurately.
- Temperature independent PID control to suitable for different packaging materials.
- Positioned stop function, without sticking knife and reduce wastage.
- Driving system for reliable working and convenient maintenance.
Specification
| Model | UMEO-600 | UMEO-450 |
| Bag Length | 100-450 mm | 100-450 mm |
| Bag Width | 50-280 mm | 50-210 mm |
| Product Height ( Max.) | 80 mm | 80 mm |
| Film Roll Dia （Max.） | 320 mm | |
| Film Width (Max.) | 600 mm | 450 mm |
| Packing Speed | 40-150 packet / min | 40-160 packet /min |
| Power | 220V AC 50HZ,single phase,2.8Kw | 220V AC 50HZ,single phase,2.6Kw |
| Packaging Film | Laminated film (OPP/CPP,OPP/CE,PET/PE,Aluminium foil,PE/PE etc) | |
| Dimension | 4050(L)x1000(W)x1468(H) mm | 4020(L)x900(W)x1450(H) mm |
| Net Weight | 590 Kg | 495 Kg |
| Optional | Air filling device / Linking device / Ethyl alcohol device | |
