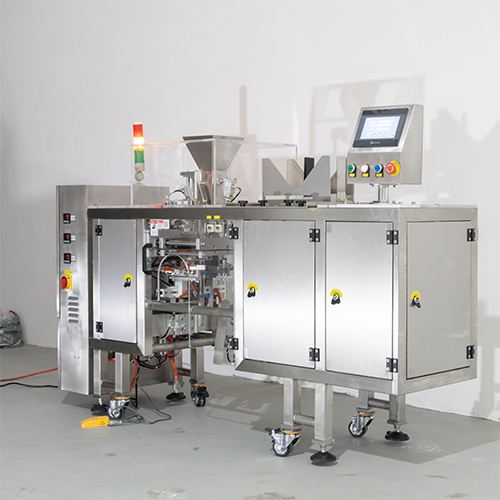

Single Position Premade Pouch Doypack Packaging Machinery
Product Code:UMEO-G280
CONTACT US
Share:
Description
- Adopt advanced Mitsubishi PLC, match with multilingual operation touch screen and electric control system.
- Alarm function for no pouch or pouch open error,no fill that the bag won't be sealed to reduce waste.
- Adjustable bag width within its range; width of clips is adjustable too by control-button.
- Machine stops at abnormal air pressure,heater disconnection alarm.
- Safety door that stop working when open to protect working.

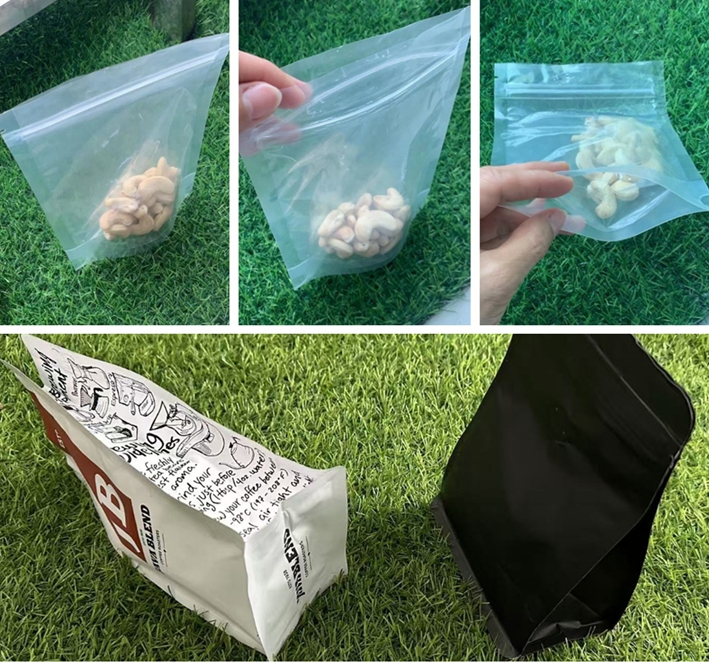

- Kinds of bag type and bag material workable.
Video
Specification
| Model | UMEO-G280 | UMEO-G330 |
| Capacity | 5-15 bags per minute | 5 - 12 bags per minute |
| Bag Width | 70-280 mm | 80-440 mm |
| Bag Length | 80-320 mm | 70-330mm |
| Bag Type | stand-up pouch with zipper, side sealing bag, quad seal bag, gusseted bag | |
| Total Power | 1.5KW | 2.0 KW |
| Voltage | 220V,50/60Hz,1 Phase | |
| Air Consumption | 7.0 CFM @ 80 PSI | 8.0 CFM @ 90 PSI |
