10kg package packing machine

Automatic 10kg Pouch Package Packing Machinery UMEO-820D

The 10kg packaging machine has been shipped to Thailand in July,2021 for coal package;as the automation equipment,10kg package is a big packed pouch and such package solution now more and more demand;as a direct manufactuer,UMEO has the other bigger machine which can make film width 1020mm for more than 10kg package.

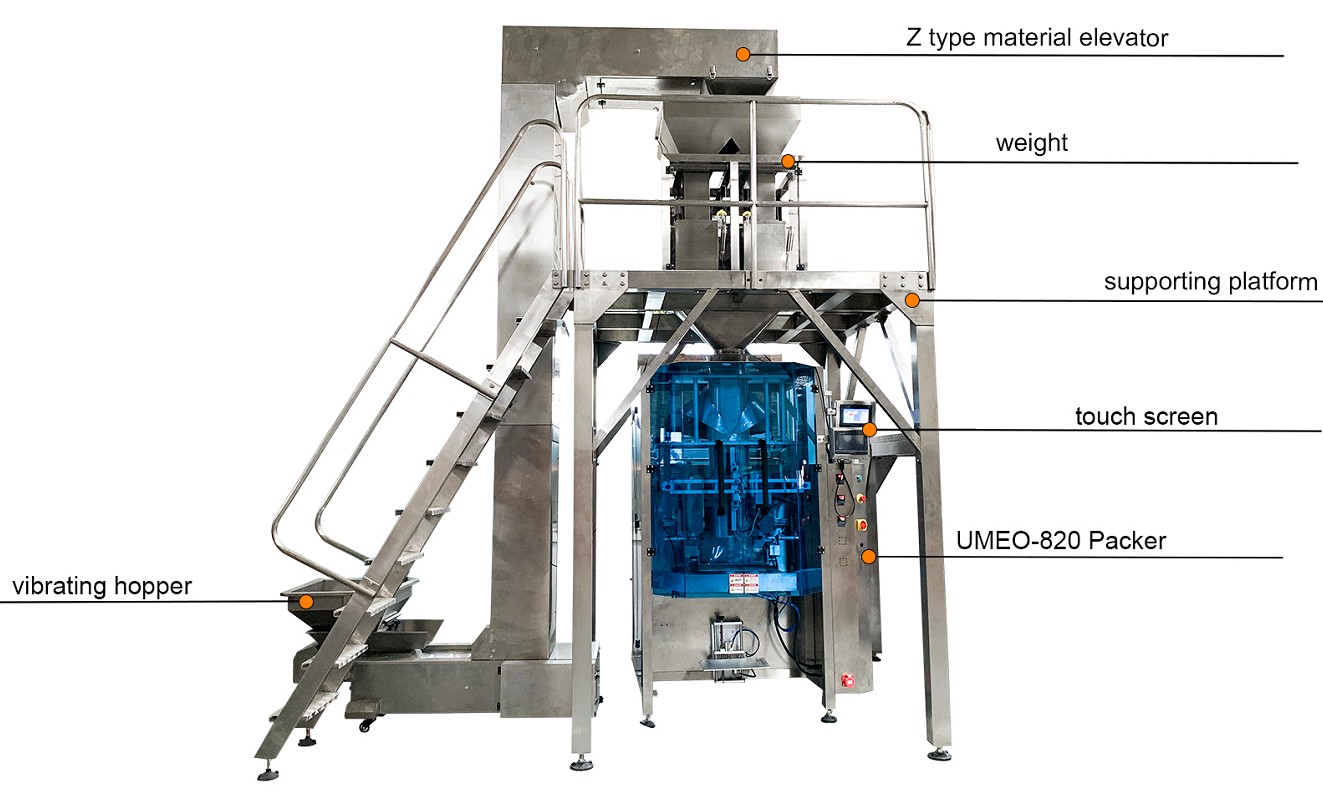

The whole packaging machiner is a big package solutions which includes 5 parts

1. Vertical Packer UMEO-820

Its main function for forming different size bag by different bag former,printing date or logo or bar code etc and sealing bag.Because the big packer usually for heavy weight package,it will have more structure than smaller packing machine,such as extra receiving device on the top and retainer plate of bag support; also the example is for PE foil package that includes the cooling sealing structure for better sealed bag.

2. 20 Litre 2-Head Weigher UMEO-D02

The weight is a multifunctional weighing device which usually for granule package of big weight,such as 5kg,8kg,10kg etc of beans,rice,coal etc package solution.

3. Z Type Material Elevator UMEO-S37

Usually the feeding elevator should go with vibration hopper to increas feeding for multihead weigher,Most of the food grade plastic hopper is 1.8 litre,but if very large capacity package that needs 4.0litre.

4. Supporting Platform UMEO-Z01

It is main function is to support the multihead weigher stable all the time and convenient person to check the weigher status.

5. Finished Product Conveyor (optional) UMEO-S20

It is for finished pouch conveying to some places,such as a box,a container etc; sometimes,it can connect with turntable,check weigher,metal detector etc.

detail part.JPG

UMEO always pays more attention to the machine every part to make sure every client get get the best quality packaging machinery to increase your package capacity.

820 details.jpg

Item No.	UMEO-820D
Bag Length	150-600mm
Bag Width	150-400mm
Film Width	820mm (Max.)
Packing Speed	4-8 bag /min
Gas Consumption	0.82m3/min
Air Pressure	0.85Mpa
Power	220V AC 50HZ/60HZ,Single phase,6.8kw
Package Material	Aluminium film,OPP/CPP,OPP/PE,PET/PE,PE/PE etc
Total Cubic Meter	16.356CBM
Gross Weight	1732kg
H.S.Code	8422.3030.90

Automatic 10KG Package Packing Machine is suitable for kinds of products mixing package,such as beans,tea,spices,health tea etc.

material 820.JPG

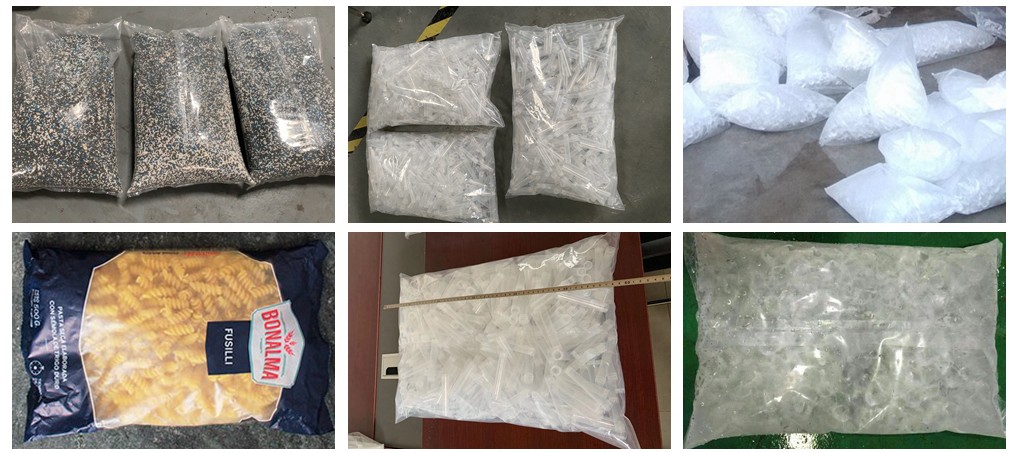

Aluminium,PE Plastic Package is always wrokable by the automatic 10kg pouch package packing machine

bag package.JPG

UMEO always pay more attention for packing machine every part,including the shipping package,with reinforced non-fumigation plywood box.

Automatic 10KG pouch package packing machine is tested as video with PE foil; As known,the temperature is very important to the PE foil sealing,so expect to add the cooling sealing structure that the temperature and the sealing time setting are the key points too.

Q: How to know if my product can be packed by this machine?

A: You can provide product details,such as product feature, weight and bag size etc.

Q: What's product of this packaging machinery can pack ?

A: The packaging machinery can packed 8-different granule or powder with percent into a pouch.

Q: How to get an exact quotation?

A: As per requested,we will suggest the best package solution,such as flat hopper or dimple hopper weigher;

because different product,some details will be different to make sure providing best package solution.

Q: I know little about the packing machine,how to use it ? Is it complex?

A: It is very easy to operate on touch screen which UMEO technician has tested everything well before shipment,

and you just need to install the machine as per our installation video,and connect power to start.

Q: How about the packaging machine quality? Any certification it has?

A: UMEO has a strict Quality Control system from design-raw material purchase-production-package-shipment by

almost all over 10-year experience people on machines; and all machines have been passed the most important

standard of MD and LVD by Italy ISET s.r.l.

Q: What's the after-sales and warranty ?

A: First: operation manual is always available and shipped with packing machine; Second: installation video can be

provided, even internet face-to-face assistance;Third: UMEO technician is always available for abroad service.

Warranty: all the machine has one year guarantee and if unfortunately some problem under correct using and manitain,

UMEO can provide the alternative parts by express; for quick-wear parts,always are provided more with machine shipping.
