Stand Up Vertical Pouch Packing Machine

Stand Up Pouch Packaging Machine UMEO-420D Flat Bottom

The customized stand up pouch packing machinery had been shipped to Bulgaria that the client packs the spices which is similar tea and as known,such flat bottom pouch is new and welcome by local customers.without the supporting platform that is smaller space and lower cost,even can increase the packing speed.

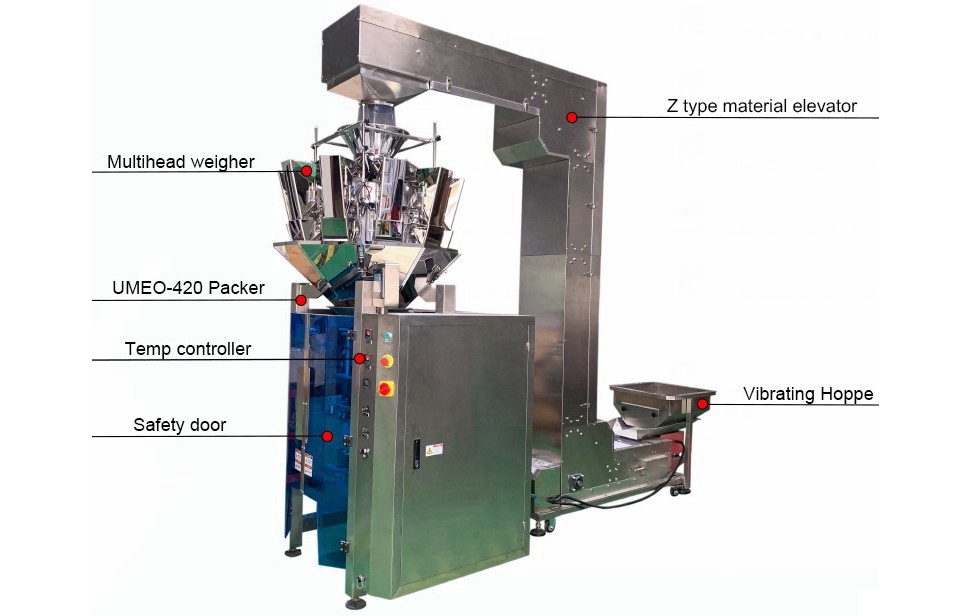

The whole package line is an economic machines which only includes FOUR parts

1. Vertical Packer UMEO-420

Its main function for forming different size bag by different bag former,printing date or logo or bar code etc and sealing bag.

2. 10-Head Weigher UMEO-D10

This is a flat surface with 1.6 litre as per packed product feature.

flat design usually for dry and good liquidity products weighing.

3. Z Type Material Elevator UMEO-S37

Usually the feeding elevator should go with vibration hopper to increas feeding for multihead weigher,

Most of the food grade plastic hopper is 1.8 litre,but if very large capacity package that needs 4.0litre.

4. Finished Product Conveyor (optional) UMEO-S20

It is for finished pouch conveying to some places,such as a box,a container etc;

sometimes,it can connect with turntable ,check weigher,metal detector etc.

420D packing machine.JPG

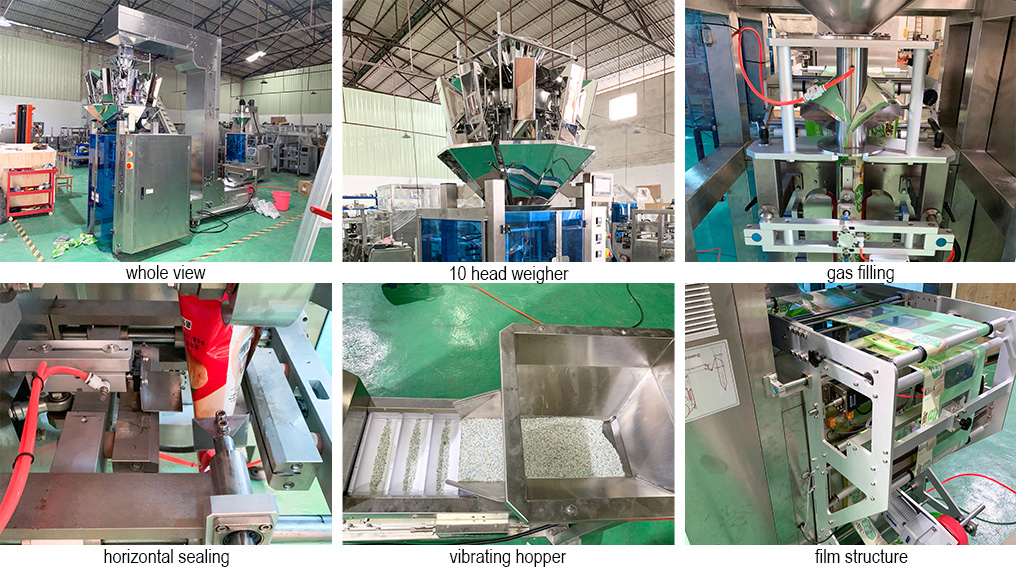

UMEO always pays more attention to the machine every part to make sure every client get get the best quality packaging machinery to increase your package capacity.

420D AIO.jpg

Item No.	UMEO-420D
Bag Length	80-300mm
Bag Length	80-200mm
Film Width	420mm (Max.)
Packing Speed	35-85 bag /min
Gas Consumption	0.42m3/min (If Servo,it is less)
Air Pressure	0.45Mpa
Power	220V AC 50HZ/60HZ,Single phase,6.5kw
Package Material	Aluminium film,OPP/CPP,OPP/PE,PET/PE,PE/PE etc
Total Cubic Meter	8.355CBM
Gross Weight	1358kg
H.S.Code	8422.3030.90

Automatic Stand Up Pouch Packing Machine is suitable for kinds of products package,such as beans,candy,chips,puffed snack,biscuits etc. package material.JPG

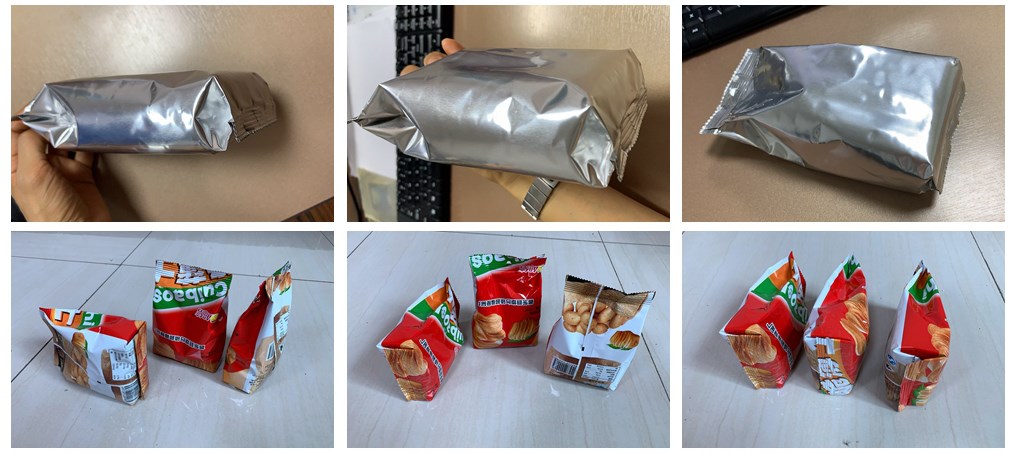

Aluminium or Plastic Stand Up Pouch Package is a New stype which is very welcome in Europe Market recently.

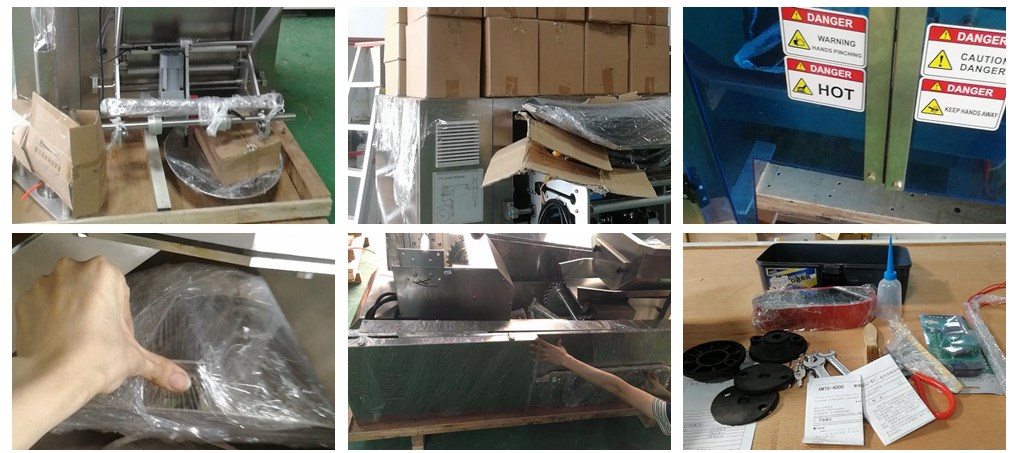

UMEO always pay more attention for packing machine every part,including the shipping package,with reinforced non-fumigation plywood box.

UMEO-420D all-in-one packing machine is an ecomonic package solution for lower budget solution;

Meanwhite the machine is a easy operation with control operaion on the human operation interface.

To make sure the bottom function is open during working.

Q: How to know if my product can be packed by this machine?

A: You can provide product details,such as product feature, weight and bag size etc.

Q: What's product the packaging machinery can do?

A: The multihead weigher packing machine can pack kinds of dry granule,such as candy,beans,chips etc.

Q: How to get an exact quotation?

A: As per requested,we will suggest the best package solution,such as flat hopper or dimple hopper weigher;

because different product,some details will be different to make sure providing best package solution.

Q: I know little about the packing machine,how to use it ? Is it complex?

A: It is very easy to operate on touch screen which UMEO technician has tested everything well before shipment,

and you just need to install the machine as per our installation video,and connect power to start.

Q: How about the packaging machine quality? Any certification it has?

A: UMEO has a strict Quality Control system from design-raw material purchase-production-package-shipment by

almost all over 10-year experience people on machines; and all machines have been passed the most important

standard of MD and LVD by Italy ISET s.r.l.

Q: hat's the after-sales and warranty ?

A: First: operation manual is always available and shipped with packing machine;Second: installation video can be

provided,even internet face-to-face assistance; Third: UMEO technician is always available for abroad service.

Warranty: all the machine has one year guarantee and if unfortunately some problem under correct using and manitain,

UMEO can provide the alternative parts by express; for quick-wear parts,always are provided more with machine shipping.
