3kg TTO printer packing machine

3kg Packing Machine with Bar Code TTO Printer UMEO-620D

The packaging solution is supplied for different colors of plastic grain raw material package for China major industry,such as air conditioning ,washing machine, electric fan manufacturing etc who has a very strict for the colors controlling production.

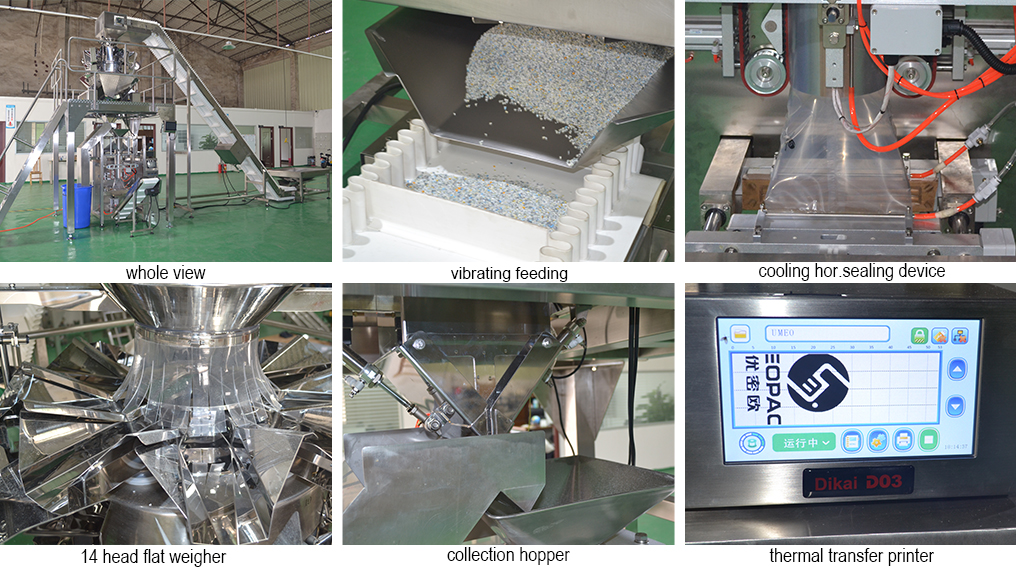

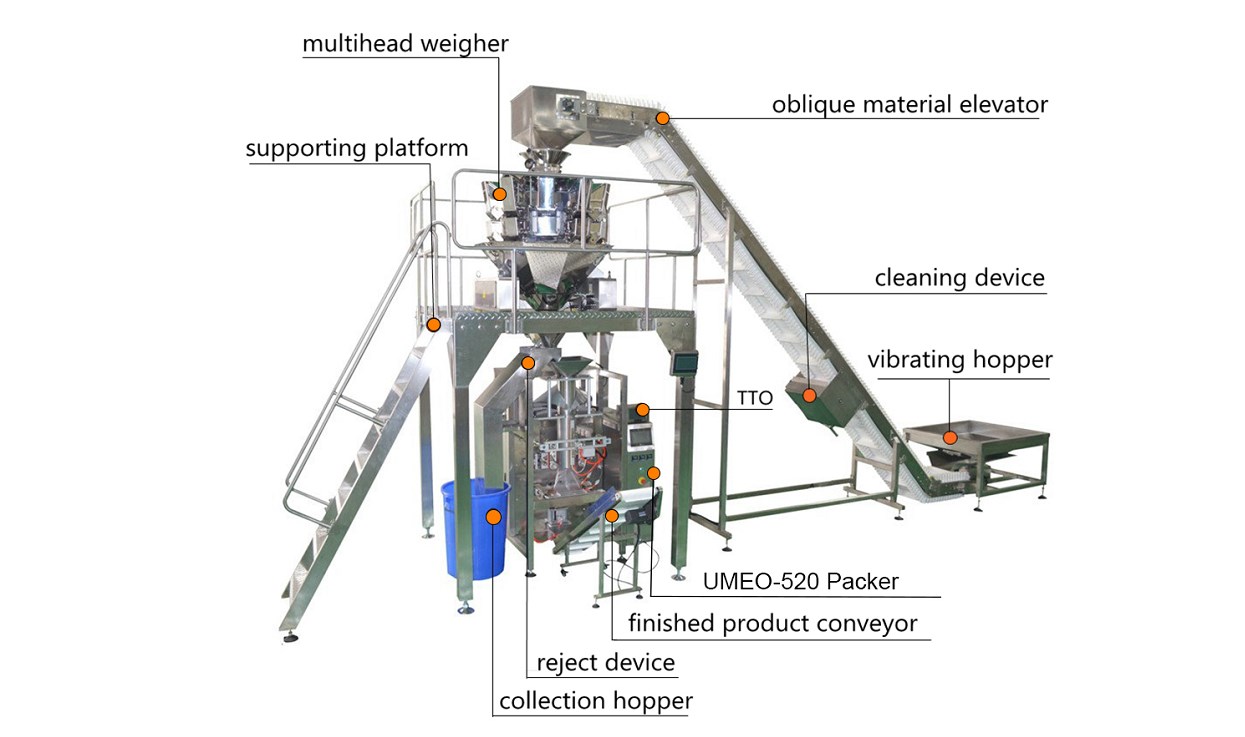

The whole package line is a multifunctional machines which includes 7 parts

1.  Vertical Packer UMEO-620

Its main function for forming different size bag by different bag former,printing date or logo or bar code etc and sealing bag.

2.  14-Head Weigher UMEO-D14

This is a flat surface with 2.5 litre as per packed product feature.flat design usually for dry and good liquidity products weighing.

3.  Oblique Material Elevator (with cleaning function) UMEO-S36

the oblique belt material elevator is easy to see its feeding status and easier to clean; especiall for stick or

demanding cleaning products feeding.

4.   Supporing Platform UMEO-Z01

It is usually dimple floor for antislip and its main function is to support the multihead weigher stably and easy for check the weigher.

5. Finished Product Conveyor UMEO-S20

It is for finished bag conveying to some places,such as a box,a container;also it can connect with turntable ,check weigher,metal detector etc.

6. Thermal Transfer Printer ( TTO ) UMEO-P01

TTO printer can print LOGO,address,phone number,bar code,pictures etc that's necessary for supermarker package.

7. Rejection Device

It is for a weighing weight checking; once the weight is out of the setting range,the filling product will be recyclable.



UMEO always pays more attention to the machine every part to make sure every client get get the best quality packaging machinery to increase your package capacity.


Item No.


Bag Length


Bag Width


Film Width

620mm (Max.)

Packing Speed

35-55 bag /min

Gas Consumption

0.62m3/min (If Servo,it is less)

Air Pressure



220V AC 50HZ/60HZ,Single phase,6.9kw

Package Material

Aluminium film,OPP/CPP,OPP/PE,PET/PE,PE/PE etc

Total Cubic Meter


Gross Weight




Automatic Packing Machine is suitable for kinds of products package,such as beans,candy,chips,puffed snack,biscuits etc.

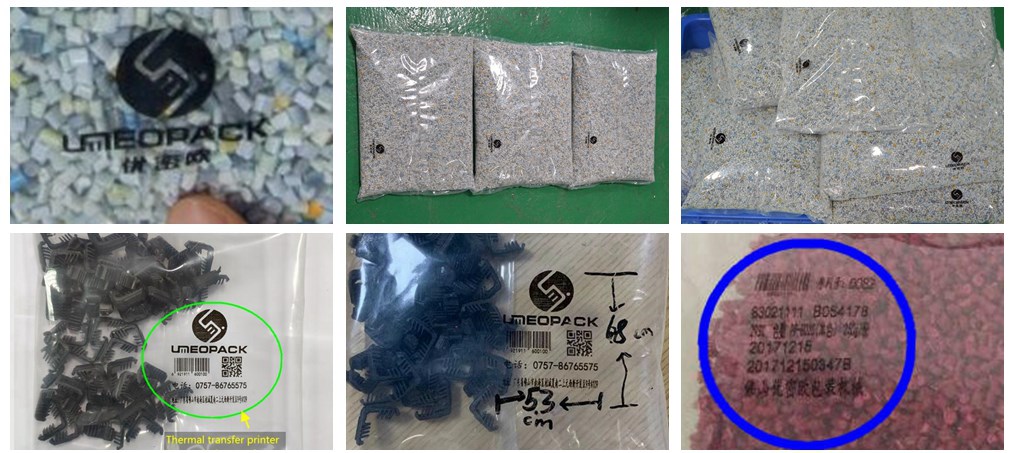

Aluminium or Plastic Stand Up Pouch Package with Logo,bar code,address,phone etc more information printing to develop brand.

sample bag.JPG

UMEO always pay more attention for packing machine every part,including the shipping package,with reinforced non-fumigation plywood box.


The auto granule packing machinery has an additional reject function and the thermal transfer printer which it requests the all working should be synchronous step by step on the setting.

Q:  How to know if my product can be packed by this machine?

A:  You can provide product details,such as product feature, weight and bag size etc.


Q:  What's product the packaging machinery can do?

A:   The multihead weigher packing machine can pack kinds of dry granule,such as candy,beans,chips etc.


Q:   How to get an exact quotation?

A:   As per requested,we will suggest the best package solution,such as flat hopper or dimple hopper weigher;

because different product,some details will be different to make sure providing best package solution.


Q: I know little about the packing machine,how to use it ? Is it complex?

A: It is very easy to operate on touch screen which UMEO technician has tested everything well before shipment,

and you just need to install the machine as per our installation video,and connect power to start.


Q: How about the packaging machine quality? Any certification it has?

A: UMEO has a strict Quality Control system from design-raw material purchase-production-package-shipment by

almost all over 10-year experience people on machines; and all machines have been passed the most important

standard of MD and LVD by Italy ISET s.r.l.


Q: What's the after-sales and warranty ?

A: First: operation manual is always available and shipped with packing machine;Second: installation video can be provided,

even internet face-to-face assistance;Third: UMEO technician is always available for abroad service.

Warranty: all the machine has one year guarantee and if unfortunately some problem under correct using and manitain,

UMEO can provide the alternative parts by express; for quick-wear parts,always are provided more with machine shipping.
