Automatic Quad Seal Pouch Packing Machine UMEO-420TD Gusseted

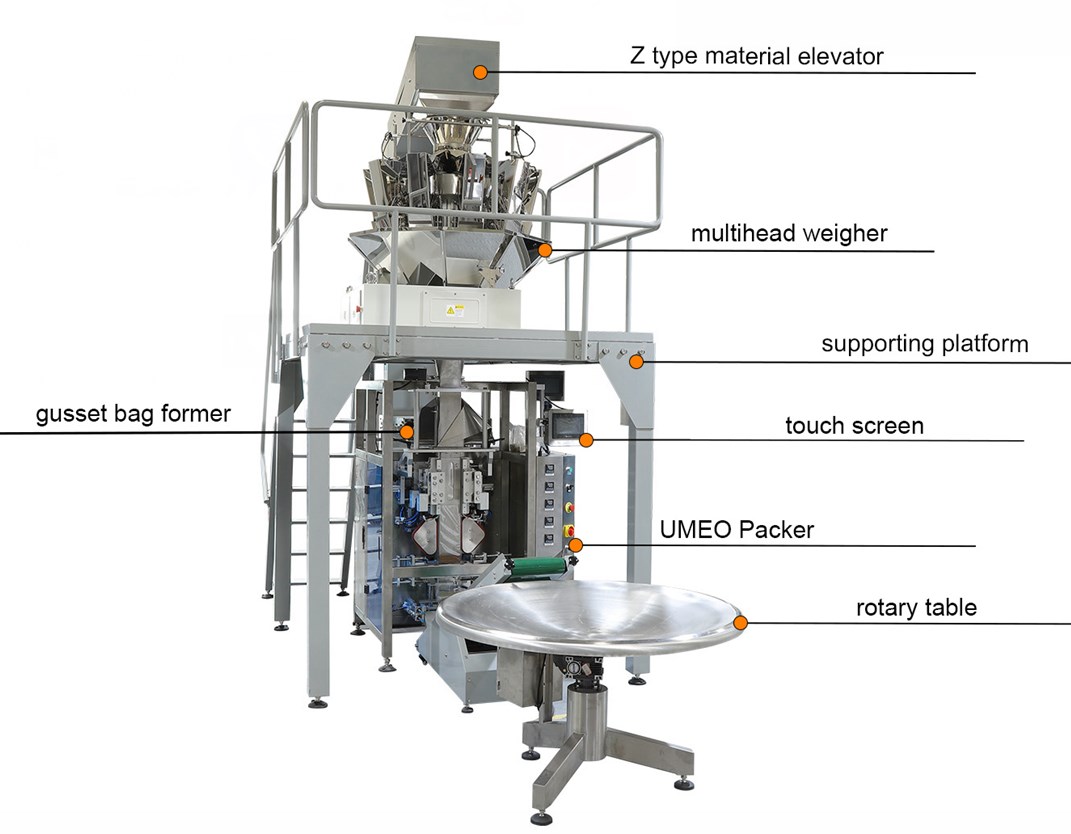

The whole package line is a multifunctional machines which includes 6 parts

1.  Vertical Gusset Packer UMEO-420T

Its main function for forming and sealing different size quad seal bag by different bag former, and it can match with different printer

to print manufacture date,expiry date,item number,bar code,company logo, address,phone,bar code etc .

2.  10-Head Weigher UMEO-D10

This is a flat surface with 2.5 litre as per packed product feature.flat design usually for dry and good liquidity products weighing.

3.  Z Type Material Elevator UMEO-S38

Usually the feeding elevator should go with vibration hopper to increas feeding for multihead weigher,Most of the food grade

plastic hopper is 1.8 litre,but if very large capacity package that needs 4.0litre.


4.   Supporing Platform UMEO-Z01

It is usually dimple floor for antislip and its main function is to support the multihead weigher stably and easy for check the weigher.


5. Finished Product Conveyor UMEO-Z20

It is for finished bag conveying to some places,such as a box,a container;also it can connect with turntable ,check weigher,metal detector etc.


6. Rotating Table UMEO-S12

It is a finished package bag collection which is connected with the output conveyor.


quad seal pouch packing machine.jpg

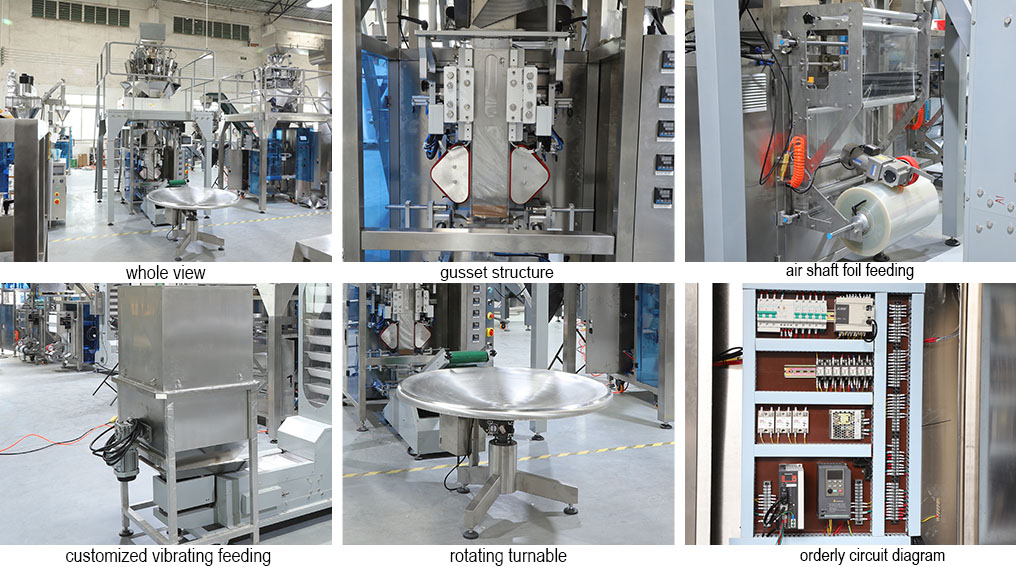

UMEO always pays more attention to the machine every part to make sure every client get get the best quality packaging machinery to increase your package capacity.

machine details.jpg

Item No.


Bag Length


Bag Width

50-150mm (front width),35-70mm(side width),5-10mm(iron width)

Film Width

420mm (Max.)

Packing Speed

25-50 bag /min

Gas Consumption

0.43m3/min (If Servo,it is less)

Air Pressure



220V AC 50HZ/60HZ,Single phase,5.9kw

Package Material

Aluminium film,OPP/CPP,OPP/PE,PET/PE,PE/PE etc

Total Cubic Meter


Gross Weight




Automatic Quad Seal Pouch Packing Machine is suitable for kinds of products package,such as beans,candy,chips,puffed snack,biscuits etc.

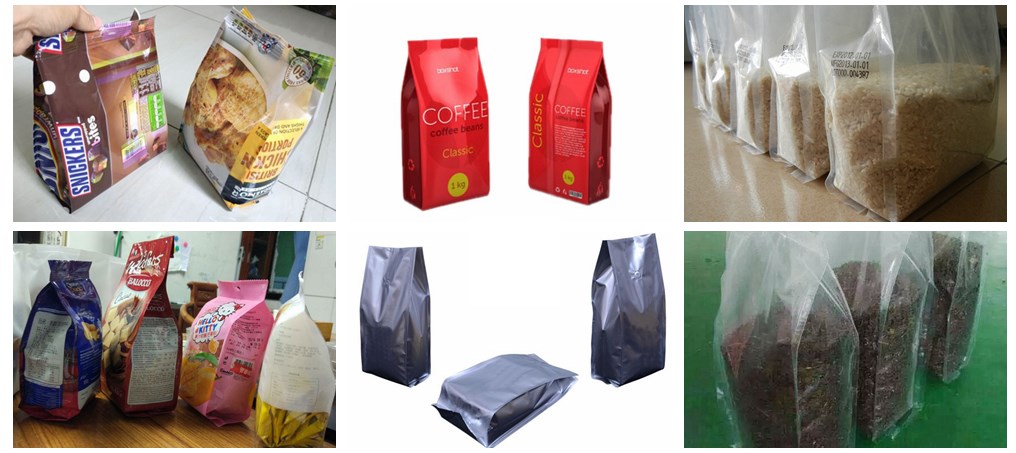

Aluminium or Plastic Stand Up Pouch Package with Logo,bar code,address,phone etc more information printing to develop brand.

gusset bag.JPG

UMEO always pay more attention for packing machine every part,including the shipping package,with reinforced non-fumigation plywood box.


The auto granule packing machinery has an additional reject function and the thermal transfer printer which it requests the all working should be synchronous step by step on the setting.

Q:  How to know if my product can be packed by this machine?

A:  You can provide product details,such as product feature, weight and bag size etc.


Q:  What's product the packaging machinery can do?

A:   The multihead weigher packing machine can pack kinds of dry granule,such as candy,beans,chips etc.


Q:   How to get an exact quotation?

A:   As per requested,we will suggest the best package solution,such as flat hopper or dimple hopper weigher;

because different product,some details will be different to make sure providing best package solution.


Q: I know little about the packing machine,how to use it ? Is it complex?

A: It is very easy to operate on touch screen which UMEO technician has tested everything well before shipment,

and you just need to install the machine as per our installation video,and connect power to start.


Q: How about the packaging machine quality? Any certification it has?

A: UMEO has a strict Quality Control system from design-raw material purchase-production-package-shipment by

almost all over 10-year experience people on machines; and all machines have been passed the most important

standard of MD and LVD by Italy ISET s.r.l.


Q: What's the after-sales and warranty ?

A: First: operation manual is always available and shipped with packing machine;Second: installation video can be provided,

even internet face-to-face assistance;Third: UMEO technician is always available for abroad service.

Warranty: all the machine has one year guarantee and if unfortunately some problem under correct using and manitain,

UMEO can provide the alternative parts by express; for quick-wear parts,always are provided more with machine shipping.
