1kg powder mixed packaging machinery
SEND INQUIRY NOW

Powder Mixed Packaging Machinery UMEO-420F

Mixing and blending packing machine of dry mixing is the process of combiniing different powders together in a mixing tank,to create a homogerous product within strict constrains in a fast way wihthout damaging particles; the UMEO package line not only fast,but very accurace in a gentle manner;the food industry accounts for a very high number of powders,which need to be handled with different characteristics and behaviours.the observation scale is also crucial to be able to qualify the homogeneity degress of a powder mix and pack.

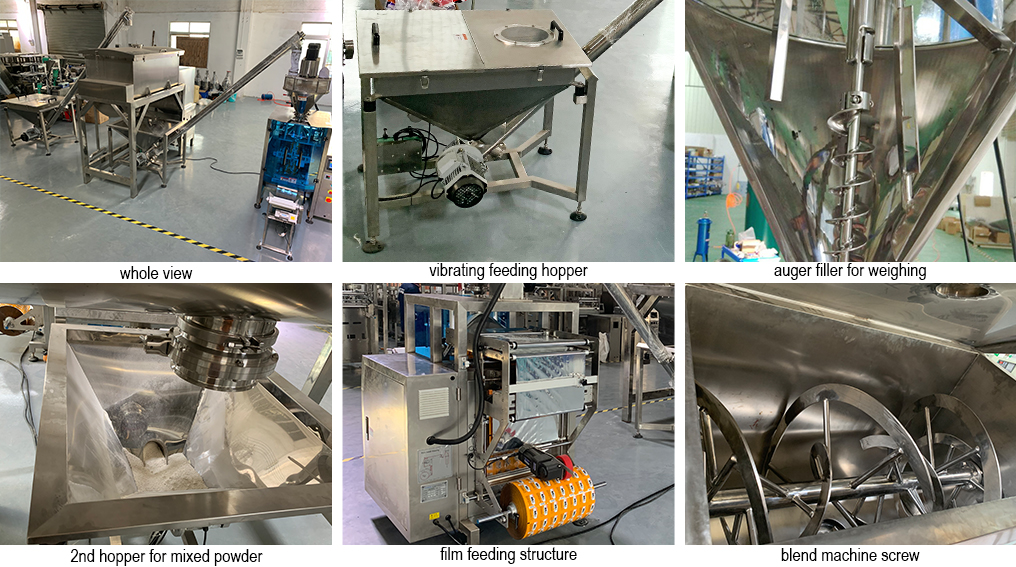

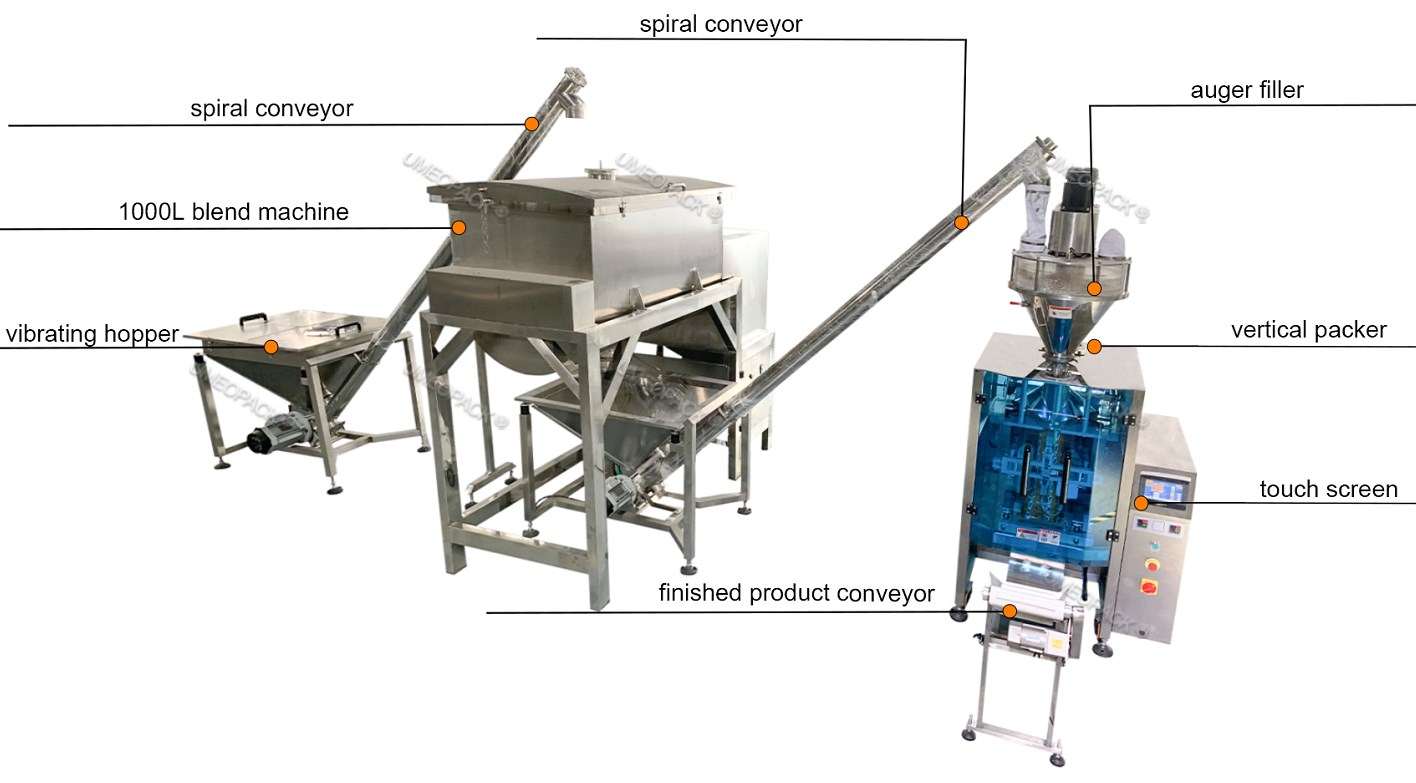

The whole package line has 5-parts

1.  Vertical Gusset Packer UMEO-420

Its main function for forming different size bag by different bag former,printing date or logo or bar code etc and sealing bag. And the Human Interface Operation Screen is a customized for client's small operation space limited.

2.  Auger Filler UMEO-F35

Auger filler machine is suitable for kinds of powder weighing,such as milk powder,flour,coffee powder,spices powder,protein powder,fruit powder etc auto measuring and filling,and its workmanship of auger screw much be strict and each screw distance must be equip,OR precision difference.

3.  Spircal Conveyor UMEO-S15

The vibrating spiral feeder machine can lift various powder materials,match with packing machine to realize material level tracking and automatic feeding,also can be used for other industry.the

package line has first feeding to mixing machine and second conveying for mixed powder to vertical machine.

4.   Blend Machine

Screw mixer powder mixing machine has 1000 litre hopper for storage different powder in one time and the UMEO special spiral design can make the mixed powder is uniform in a short time to increase the whole production package capacity.

5. Finished Product Conveyor  UMEO-S20

The conveyor usually for finished bag conveying to some places,such as a box,a container;also it can connect with turntable ,check weigher,metal detector etc.



powder mixed packing machine.JPG

UMEO always pays more attention to the machine every part to make sure every client get get the best quality packaging machinery to increase your package capacity.


Item No.

UMEO-420F

Bag Length

80-300mm

Bag Width

80-200mm

Film Width

420mm (Max.)

Packing Speed

30-50 bag /min

Gas Consumption

0.62m3/min

Air Pressure

0.68Mpa

Power

380V AC 50/60HZ,Single phase,4.5kw

Package Material

Aluminium film,OPP/CPP,OPP/PE,PET/PE,PE/PE etc

Total Cubic Meter

17.985CBM

Gross Weight

2319kg

H.S.Code

8422.3030.90

Automatic powder VFFS mixed packaging machinery is widely applied to different powder package,such as flour powder,spices powder,coffee powder,coco powder and so on.

powder packaging.JPG

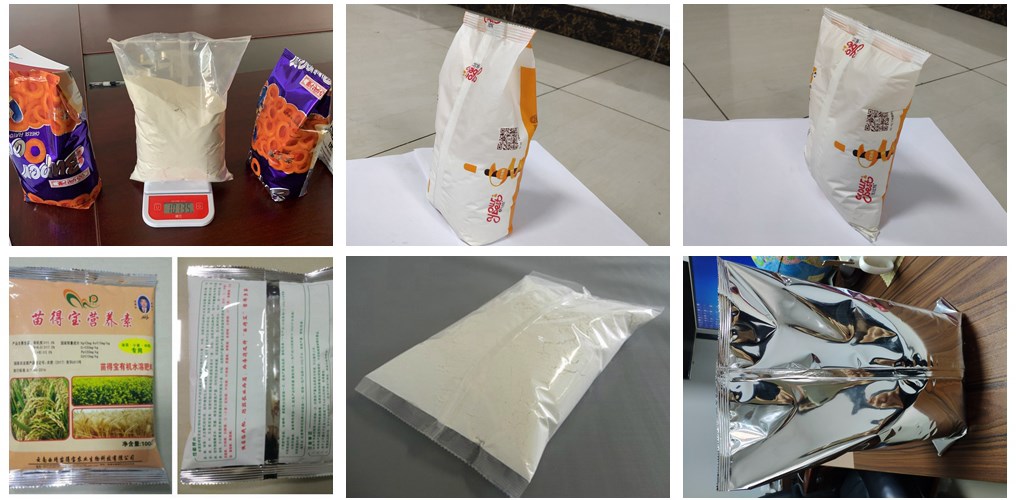

The powder mixed packaging machinery is the standard pillow bag which is the most common package in the market.

sample bag.JPG

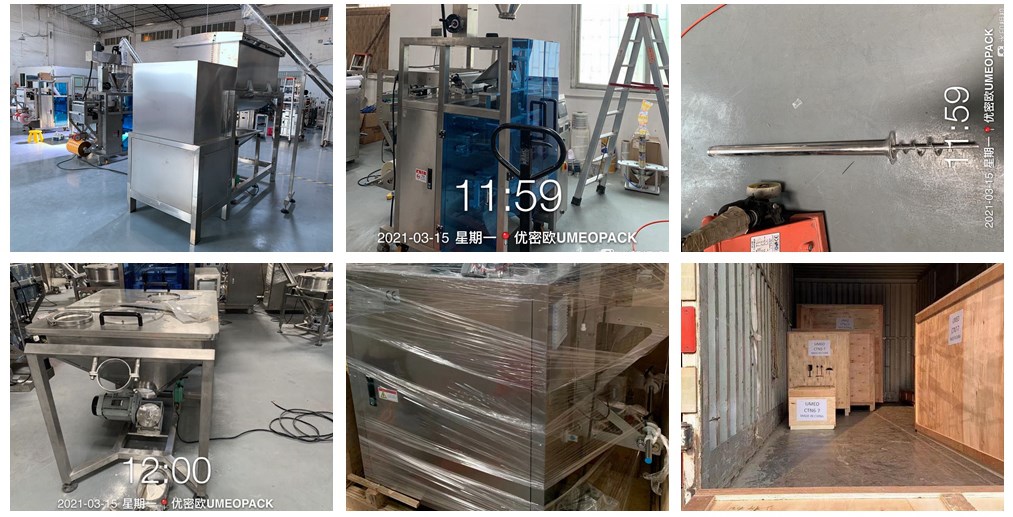

UMEO always pay more attention for packing machine every part,including the shipping package,with reinforced non-fumigation plywood box.

shipping package.JPG

Powder mixed packaging machine is a widely used for different powder package,but the powder feature is very important for the operation,such as the dust,liquility,and if some powder grain form mixed because all these will effect the finished weight precision.

Q: What kinds of product does you company have ?

A:  UMEO has different machines,including vertical and flow packing machine;meanwhile,vertical packaging machinery mainly for granule package machine,liquid or sauce pack machine and powder packaging solution;



Q:  What is product your packing machine can pack?

A:  Our packing machine mainly pack Granule ( bean,rice,candy,hardware etc.); Liquid ( water,shampoo,jelly,soup etc) ; Powder ( flour,milk powder,coffee powder,detergent powder etc) and necessity or bread,vegetables,etc molding products by flow packing machinery.



Q: What is bag shape your packing machine can make ?

A: Usually back sealing bag ( pillow bag ),three-side sealing bag,four-side sealing bag,qual seal bag,gusset bag,triangle bag,linking bag etc.



Q: I know little about the packing machine before,How to use it ? Is it complex ?

 A: It is very simple we make sure you can use it easily as per our advice. As you can get any information that can help you to install and use the packing machine,such as a detailed instruction,a whole set design,a installation video,even our technician.



Q: How about your packing machine quality ? any certification you have ?

A: We have a strict Quality Control system which is from Design Dept.-Purchasing Dept.-Product Dept.-Quality Dept.-Packing Dept. ; eighty percent have over 8 year experience,and the left twenty percent has 5 year experience; Meanwhile our packing machine has International Standard CE certification which has passed the most important standard of MD and LVD at the same time.



Q: How to choose the suitable packing machine for my product ?

A: You just need to tell us about your packing product details,packing request that we will provide a reasonable advice and the D Graph for you; even we can provide some choices for you to get a best one.



Q: What is the process to order the packing machine ?

A: First: we will provide the most suitable and reasonable packing machine for you as per your request and offer you a best quotation; Second:we will arrange the production once get your confirmation and the payment advice;About 10-30 days later we will take the finished pictures and working video for you;meanwhile our Department of Quality Assurance will inspect it till make sure every part is no problem completely; then we pack and ship it,but usually you need to arrange the balance payment before shipment; Third: we deal with the Customs Clearance and provide the shipment document for Customs and you; After some time that you can get packing machine well.



Q: What is the after-sales and guarantee ?

A: First: we will assist you to install the packing machine and make sure it can work smoothly; Second: we will provide one year of maintenance and warranty period free of charge. The buyer will carry out the maintenance tasks and we will supply and ship the replacement for defective parts to the buyer free of charge, except the damage is caused by buyer
