5KG Powder Packaging Machinery UMEO-730F

The 5kg powder packaging machine is used for one of a big flour powder factory package solution of almost all the packaging is 5kg pillow bag for baked flour,then some package packed into a carton for safe and sanitary transport.Sure,the machine can pack smaller package,such as 3KG,4KG etc by changing different bag former if the bag width is different,and the bag length is always adjustable on the HMI touch screen.

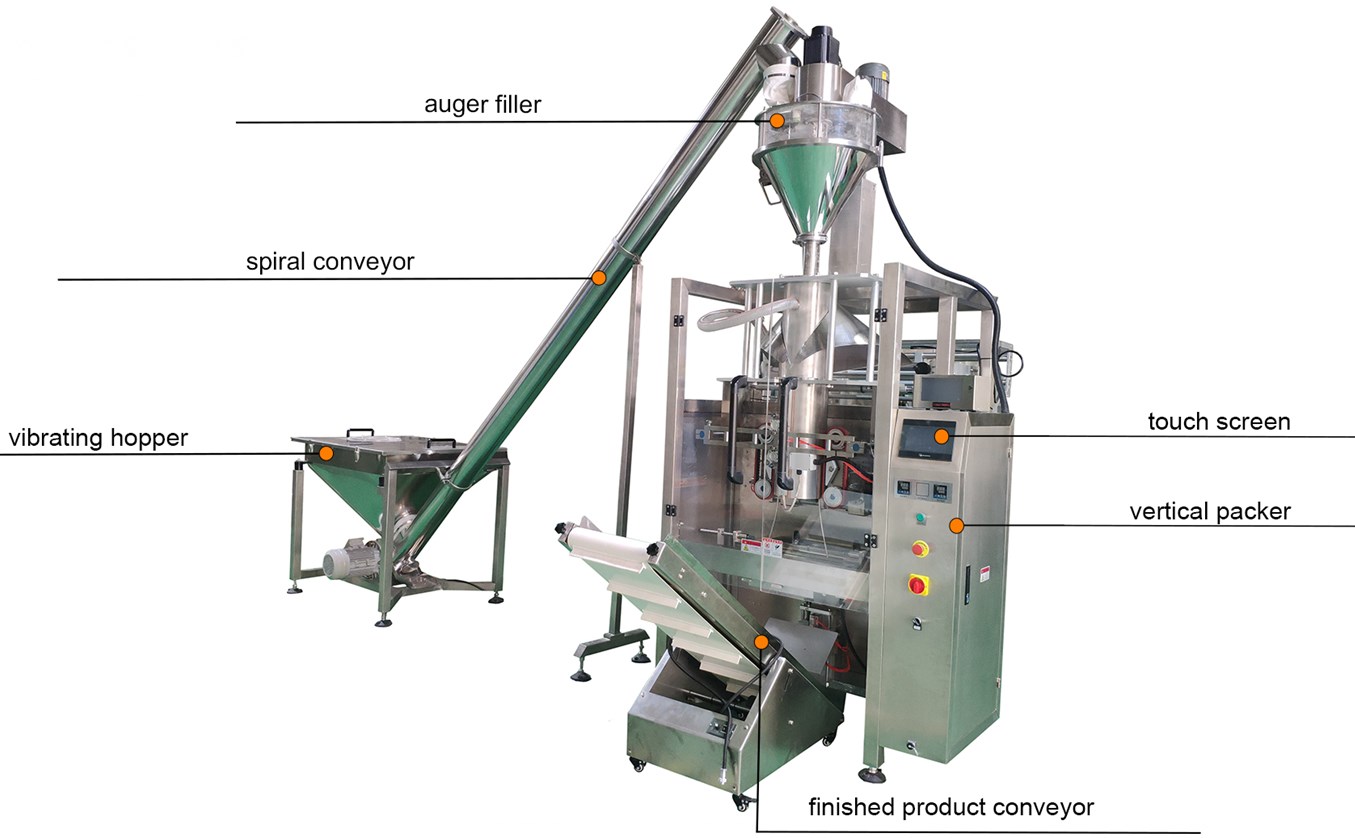

The whole packaging line includes following 4-parts

1. Vertical Packer UMEO-730

Its main function for forming different size bag by different bag former,printing date or logo or bar code etc and sealing bag. And the Human Interface Operation Screen is a customized for client's small operation space limited.

2. Auger Filler UMEO-F35

Auger filler machine is suitable for kinds of powder weighing,such as milk powder,flour,coffee powder,spices powder,protein powder,fruit powder etc auto measuring and filling,and its workmanship of auger screw much be strict and each screw distance must be equip,OR precision difference.

3. Spircal Conveyor UMEO-S15

The screw conveyor is generally used to transport used to transport powdery, granulous and nubbly bulk material, unsuitable to convey perishable, glutinous and lumpish material. It is widely used to metallurgy, chemical, construction material and food industry. Usually assembly under the silo or hopper, act as screw conveyor, arch breaker and mixer.The working principle is the material feed into the casing and screw flight was hold back by the frication resistance acted on the wall of casing during running, the screw flight push the material and make the material do axial movement, simultaneity the clockwise and counterclockwise fight act as mixer. The material can be discharged at the proper outlet at the bottom of casing or transport out at the end of chute. Conveyor with simple construction, be able to feed and discharge in many position, it is easy to operate, have good seal capability and environmental friendly

5. Finished Product Conveyor UMEO-S20

The conveyor usually for finished bag conveying to some places,such as a box,a container;also it can connect with turntable ,check weigher,metal detector etc.

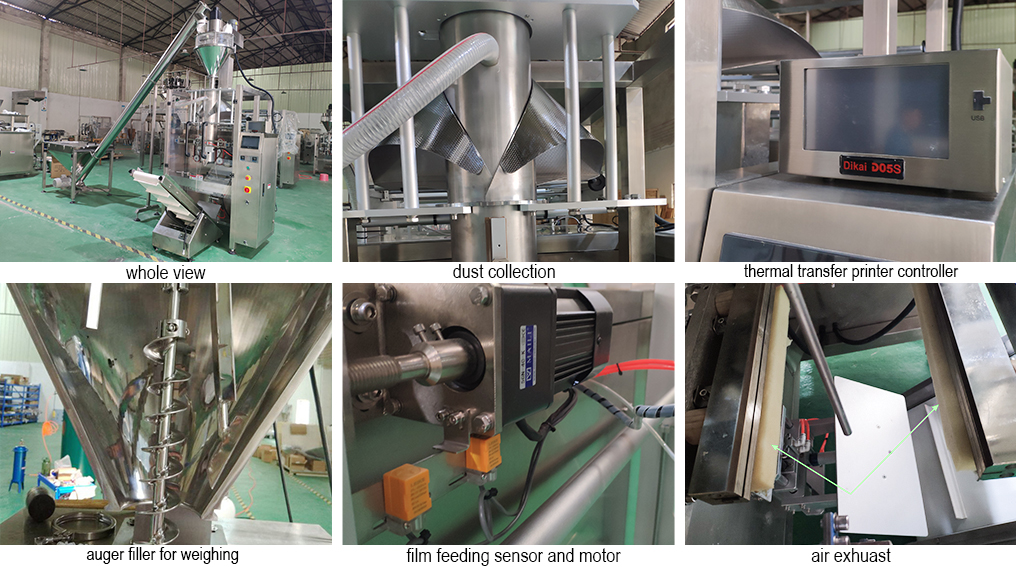

powder packing machine UMEO-730F.jpg

UMEO always pays more attention to the machine every part to make sure every client get get the best quality packaging machinery to increase your package capacity.

Item No.	UMEO-730F
Bag Length	100-500mm
Bag Width	150-350mm
Film Width	730mm (Max.)
Packing Speed	10-45 bag /min
Gas Consumption	0.68m3/min
Air Pressure	0.68Mpa
Power	380V AC 50/60HZ,3-phase,4.8kw
Package Material	Aluminium film,OPP/CPP,OPP/PE,PET/PE,PE/PE etc
Total Cubic Meter	8.035 CBM
Gross Weight	1236 kg
H.S.Code	8422.3030.90

Automatic 5kg powder packaging machine is widely applied to different powder package,such as flour powder,spices powder,coffee powder,coco powder and so on.

powder application.JPG

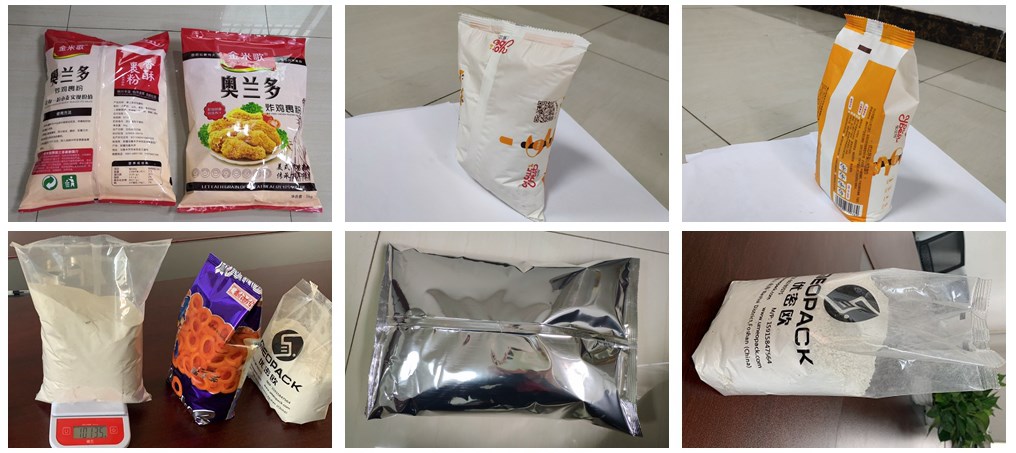

The 5kg powder package usually is the standard pillow bag and can has different punching for easily carrying.

powder package.JPG

UMEO always pay more attention for packing machine every part,including the shipping package,with reinforced non-fumigation plywood box.

For the powder packaging machinery,must make sure enough powder feeding to make the weighing result is precise;usually some first and the last bags have a big tolerance before the powder feeding is not uniform.

Q: What kinds of product does you company have ?

A: UMEO has different machines,including vertical and flow packing machine;meanwhile,vertical packaging machinery mainly for granule package machine,liquid or sauce pack machine and powder packaging solution;

Q: What is product your packing machine can pack?

A: Our packing machine mainly pack Granule ( bean,rice,candy,hardware etc.); Liquid ( water,shampoo,jelly,soup etc) ; Powder ( flour,milk powder,coffee powder,detergent powder etc) and necessity or bread,vegetables,etc molding products by flow packing machinery.

Q: What is bag shape your packing machine can make ?

A: Usually back sealing bag ( pillow bag ),three-side sealing bag,four-side sealing bag,qual seal bag,gusset bag,triangle bag,linking bag etc.

Q: I know little about the packing machine before,How to use it ? Is it complex ?

A: It is very simple we make sure you can use it easily as per our advice. As you can get any information that can help you to install and use the packing machine,such as a detailed instruction,a whole set design,a installation video,even our technician.

Q: How about your packing machine quality ? any certification you have ?

A: We have a strict Quality Control system which is from Design Dept.-Purchasing Dept.-Product Dept.-Quality Dept.-Packing Dept. ; eighty percent have over 8 year experience,and the left twenty percent has 5 year experience; Meanwhile our packing machine has International Standard CE certification which has passed the most important standard of MD and LVD at the same time.

Q: How to choose the suitable packing machine for my product ?

A: You just need to tell us about your packing product details,packing request that we will provide a reasonable advice and the D Graph for you; even we can provide some choices for you to get a best one.

Q: What is the process to order the packing machine ?

A: First: we will provide the most suitable and reasonable packing machine for you as per your request and offer you a best quotation; Second:we will arrange the production once get your confirmation and the payment advice;About 10-30 days later we will take the finished pictures and working video for you;meanwhile our Department of Quality Assurance will inspect it till make sure every part is no problem completely; then we pack and ship it,but usually you need to arrange the balance payment before shipment; Third: we deal with the Customs Clearance and provide the shipment document for Customs and you; After some time that you can get packing machine well.

Q: What is the after-sales and guarantee ?

A: First: we will assist you to install the packing machine and make sure it can work smoothly; Second: we will provide one year of maintenance and warranty period free of charge. The buyer will carry out the maintenance tasks and we will supply and ship the replacement for defective parts to the buyer free of charge, except the damage is caused by buyer
