Auto Servo High Speed Packing Machine UMEO-420D
The servo high speed packaging machinery is suitable for good liquidity granule package with small weight packages,such as candy,biscuit,nuts,beans etc package solutions; the machine total has 2 servo motor of one for pulling package film and the other for sealing bag structure which can greatly increase speed.Usually the whole production package line is for some one who needs big production capacity but small sachet snacks package.

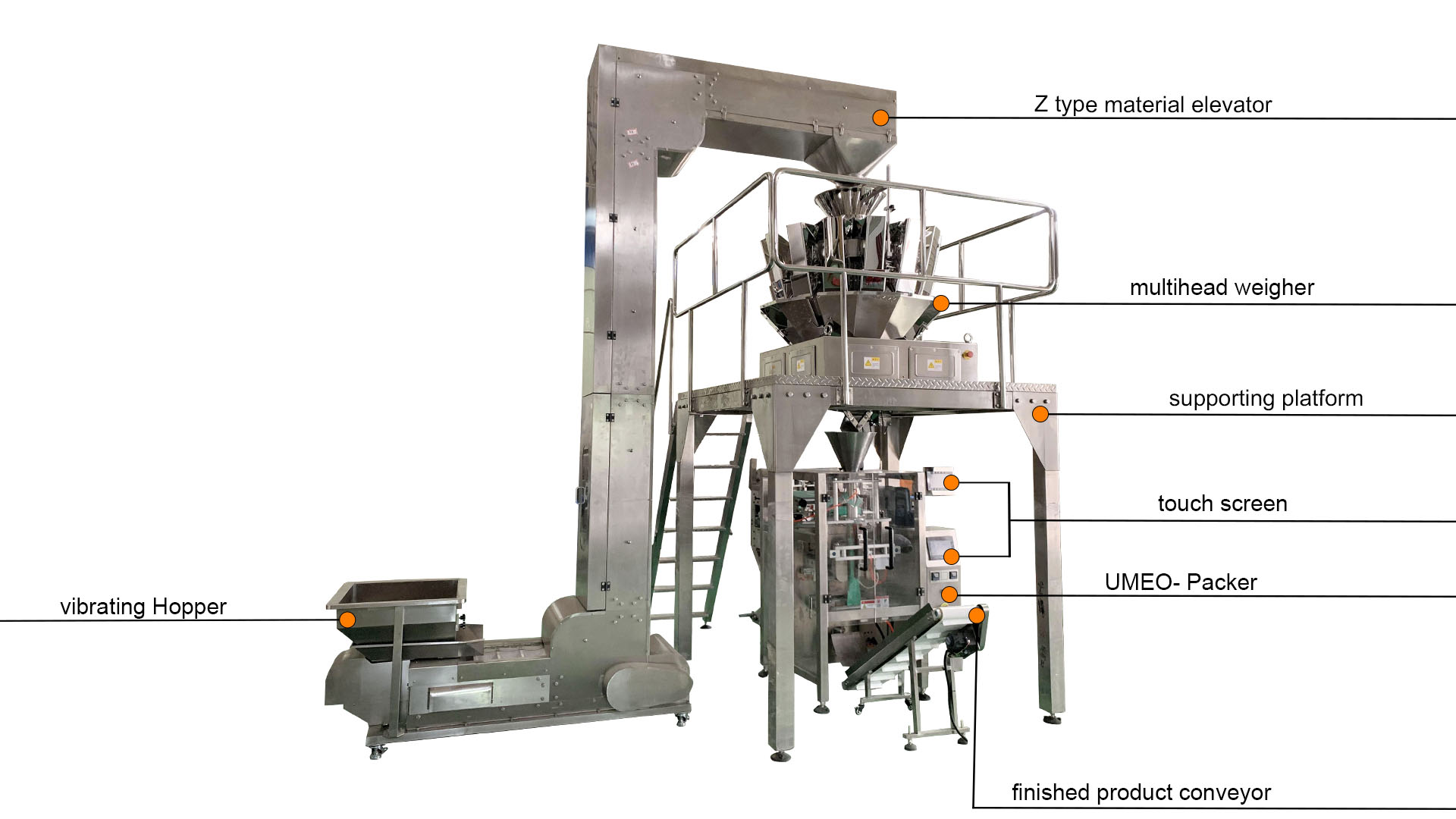

The whole package line has standard 5-parts
1. Servo High Speed Packer UMEO-420
Its main function for forming different size bag by different bag former,printing date or logo or bar code etc and sealing bag. And the Human Interface Operation Screen is a customized for client's small operation space limited.
2. 14-Head Weigher with Collection Hopper UMEO-D14
Since the whole set for the small sachet pacakge that usually 1.6 litre flat hopper is enough,but must with the collection hopper to increase the weighing speed during the whole packaging production processes.
3. Z Type Material Elevator UMEO-S37
The Z material feeding is a sealed type which can keep the products clean during conveying on the whole production package.
4. Supporing Platform UMEO-Z01
It is usually dimple floor for antislip and its main function is to support the multihead weigher stably and easy for check the weigher.
5. Finished Product Conveyor UMEO-S20
The conveyor usually for finished bag conveying to some places,such as a box,a container;also it can connect with turntable ,check weigher,metal detector etc.
UMEO always pays more attention to the machine every part to make sure every client get get the best quality packaging machinery to increase your package capacity.
Item No. |
UMEO-420D |
Bag Length |
80-300mm |
Bag Width |
80-200mm |
Film Width |
420mm (Max.) |
Packing Speed |
40-85 bag /min |
Gas Consumption |
0.42m3/min ( If Servo,it is less) |
Air Pressure |
0.65Mpa |
Power |
220V AC 50HZ/60HZ,Single phase,6.9kw |
Package Material |
Aluminium film,OPP/CPP,OPP/PE,PET/PE,PE/PE etc |
Total Cubic Meter |
10.236CBM |
Gross Weight |
1569kg |
H.S.Code |
8422.3030.90 |
Automatic Packing Machine is suitable for kinds of products package,such as beans,candy,chips,puffed snack,biscuits etc.
Aluminium or Plastic Stand Up Pouch Package with Logo,bar code,address,phone etc more information printing to develop brand.
UMEO always pay more attention for packing machine every part,including the shipping package,with reinforced non-fumigation plywood box.
The auto granule packing machinery has an additional reject function and the thermal transfer printer which it requests the all working should be synchronous step by step on the setting.
Q: How to know if my product can be packed by this machine?
A: You can provide product details,such as product feature, weight and bag size etc.
Q: What's product the packaging machinery can do?
A: The multihead weigher packing machine can pack kinds of dry granule,such as candy,beans,chips etc.
Q: How to get an exact quotation?
A: As per requested,we will suggest the best package solution,such as flat hopper or dimple hopper weigher;
because different product,some details will be different to make sure providing best package solution.
Q: I know little about the packing machine,how to use it ? Is it complex?
A: It is very easy to operate on touch screen which UMEO technician has tested everything well before shipment,
and you just need to install the machine as per our installation video,and connect power to start.
Q: How about the packaging machine quality? Any certification it has?
A: UMEO has a strict Quality Control system from design-raw material purchase-production-package-shipment by
almost all over 10-year experience people on machines; and all machines have been passed the most important
standard of MD and LVD by Italy ISET s.r.l.
Q: What's the after-sales and warranty ?
A: First: operation manual is always available and shipped with packing machine;Second: installation video can be provided,
even internet face-to-face assistance;Third: UMEO technician is always available for abroad service.
Warranty: all the machine has one year guarantee and if unfortunately some problem under correct using and manitain,
UMEO can provide the alternative parts by express; for quick-wear parts,always are provided more with machine shipping.
