Vent Valve Gussetted Bag Packing Machine UMEO-520D

The packaging machine has been shipped to Germany in March,2022 for roased coffee beans package.the package advantage is to exhause the bag air to keep the roased coffee as long time as possibly and easier for second package to delivery.

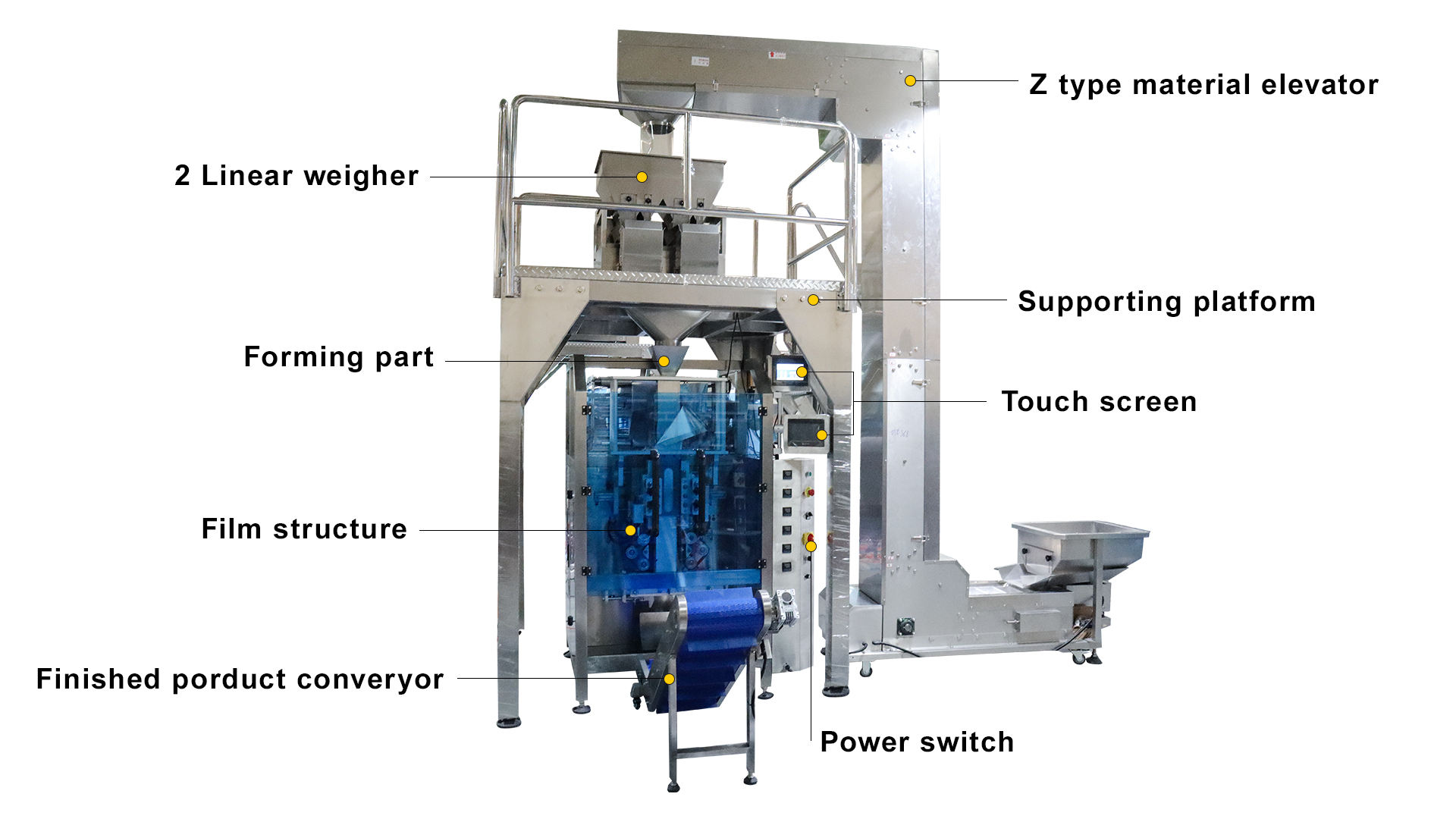

The whole package line has 6-parts

1.  Vertical Packer UMEO-520T

Its main function for forming different size bag by different bag former,printing date or logo or bar code etc and sealing bag. And the Human Interface Operation Screen is a customized for client's small operation space limited.



2.  2-Head Weigher UMEO-D02

The linear weigher is much more economic than multihead weigher and easy to operate



3.  Z Type Material Elevator UMEO-S37

The Z material feeding is a sealed type which can keep the products clean during conveying on the whole production package.



4.   Supporing Platform UMEO-Z01

It is usually dimple floor for antislip and its main function is to support the multihead weigher stably and easy for check the weigher.



5. Finished Product Conveyor UMEO-S20

The conveyor usually for finished bag conveying to some places,such as a box,a container;also it can connect with turntable ,check weigher,metal detector etc.



6. Counting plate and Fiber Optic Conveyor

The function is to feed the vent valve to the conveying foil synchronously during production.

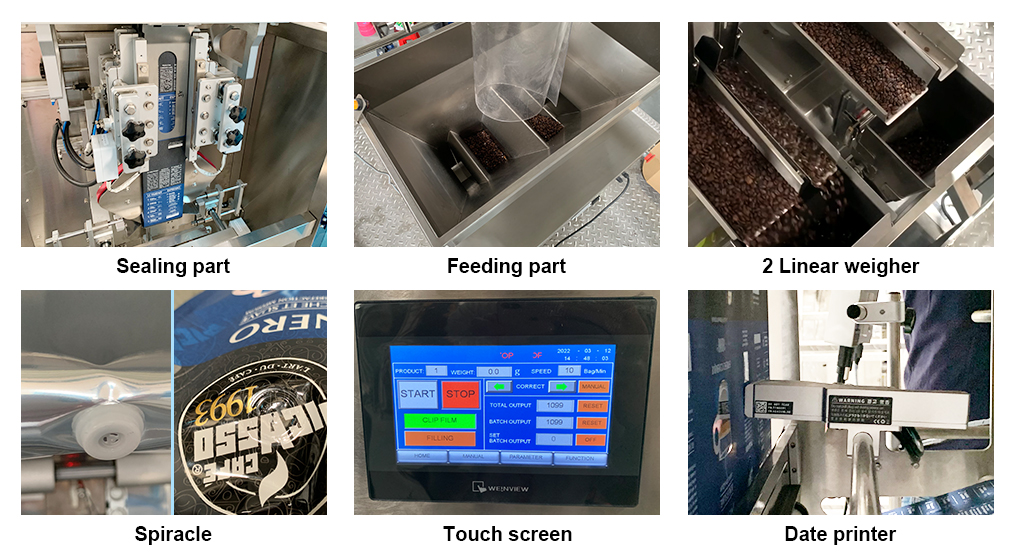

details machine.jpg

UMEO always pays more attention to the machine every part to make sure every client get get the best quality packaging machinery to increase your package capacity.

machine details.jpg

Item No.

UMEO-520D

Bag Length

100-350mm

Bag Width

Front width: 50-200mm,side width:35-100mm,iron width:5-10mm

Film Width

520mm (Max.)

Packing Speed

10-35 bag /min

Gas Consumption

0.52m3/min ( If Servo,it is less)

Air Pressure

0.68Mpa

Power

220V AC 50HZ/60HZ,Single phase,6.2kw

Package Material

Aluminium film,OPP/CPP,OPP/PE,PET/PE,PE/PE etc

Total Cubic Meter

13.365 CBM

Gross Weight

1665kg

H.S.Code

8422.3030.90

Automatic Packing Machine is suitable for kinds of products package,such as beans,candy,chips,puffed snack,biscuits etc.


BOPP/VMCPP,PET/PE,BOPP/CPP, PET/AL/PE,aluminum film etc with vent valve

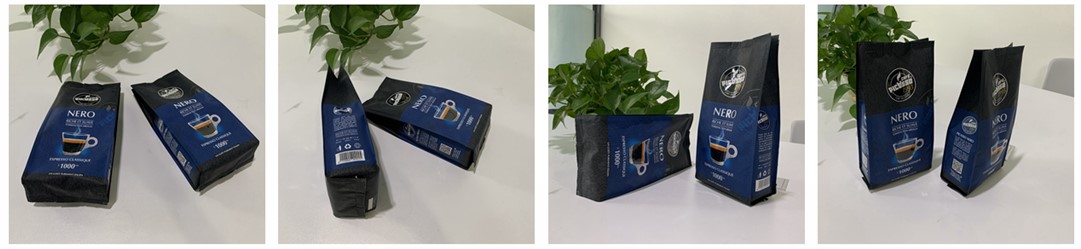

sample bag.JPG

UMEO always pay more attention for packing machine every part,including the shipping package,with reinforced non-fumigation plywood box.

Q:  How to know if my product can be packed by this machine?

A:  You can provide product details,such as product feature, weight and bag size etc.



Q:  What's product the packaging machinery can do?

A:   The multihead weigher packing machine can pack kinds of dry granule,such as candy,beans,chips etc.



Q:   How to get an exact quotation?

A:   As per requested,we will suggest the best package solution,such as flat hopper or dimple hopper weigher;

because different product,some details will be different to make sure providing best package solution.



Q: I know little about the packing machine,how to use it ? Is it complex?

A: It is very easy to operate on touch screen which UMEO technician has tested everything well before shipment,

and you just need to install the machine as per our installation video,and connect power to start.



Q: How about the packaging machine quality? Any certification it has?

A: UMEO has a strict Quality Control system from design-raw material purchase-production-package-shipment by

almost all over 10-year experience people on machines; and all machines have been passed the most important

standard of MD and LVD by Italy ISET s.r.l.



Q: What's the after-sales and warranty ?

A: First: operation manual is always available and shipped with packing machine;Second: installation video can be provided,

even internet face-to-face assistance;Third: UMEO technician is always available for abroad service.

Warranty: all the machine has one year guarantee and if unfortunately some problem under correct using and manitain,

UMEO can provide the alternative parts by express; for quick-wear parts,always are provided more with machine shipping.
