commodity venting packing machinery
SEND INQUIRY NOW

Commodity venting flow packing machine

horizontal flow packaging machine is a three-servo machinery which can pack different products,such as plates,bread,sausages, fish, ice-lollies, soft candies, fresh fruits etc

1. Dual frequency conversion control, bag length can be set and cut on one step, saving time and film.

2. Interface features easy and quick setting and operation.

3. Self failure diagnosis, clear failure display.

4. High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.

5. Temperature independent PID control, more suitable for packing different materials.

6. Positioned stop function, without sticking knife or wasting film.

7. Simple driving system, reliable working, convenient maintenance.

8. All control is realized through software, easy for function adjusting and technical upgrade.

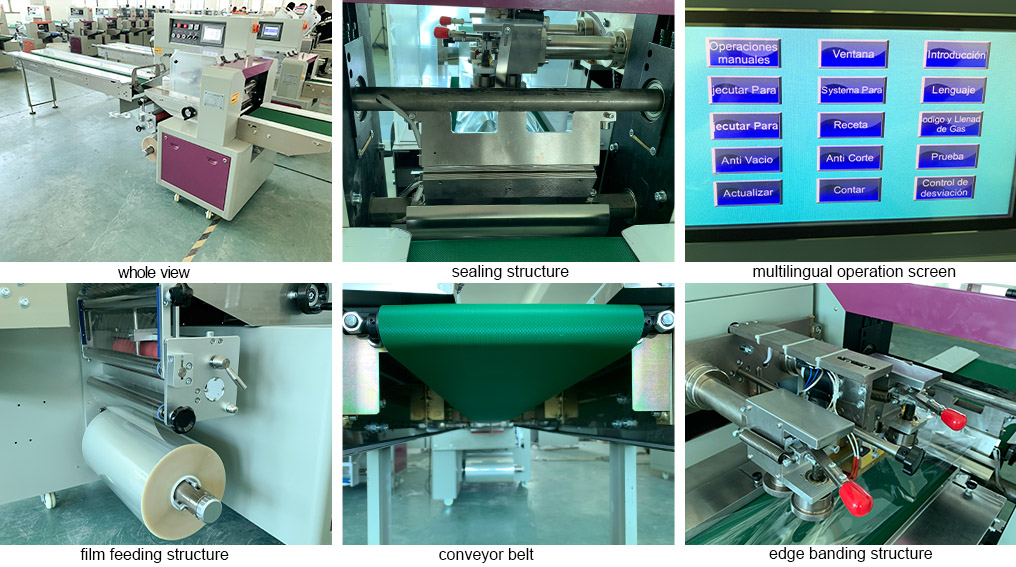

machine details.jpg

UMEO always pays more attention to the machine every part to make sure every client get get the best quality packaging machinery to increase your package capacity.

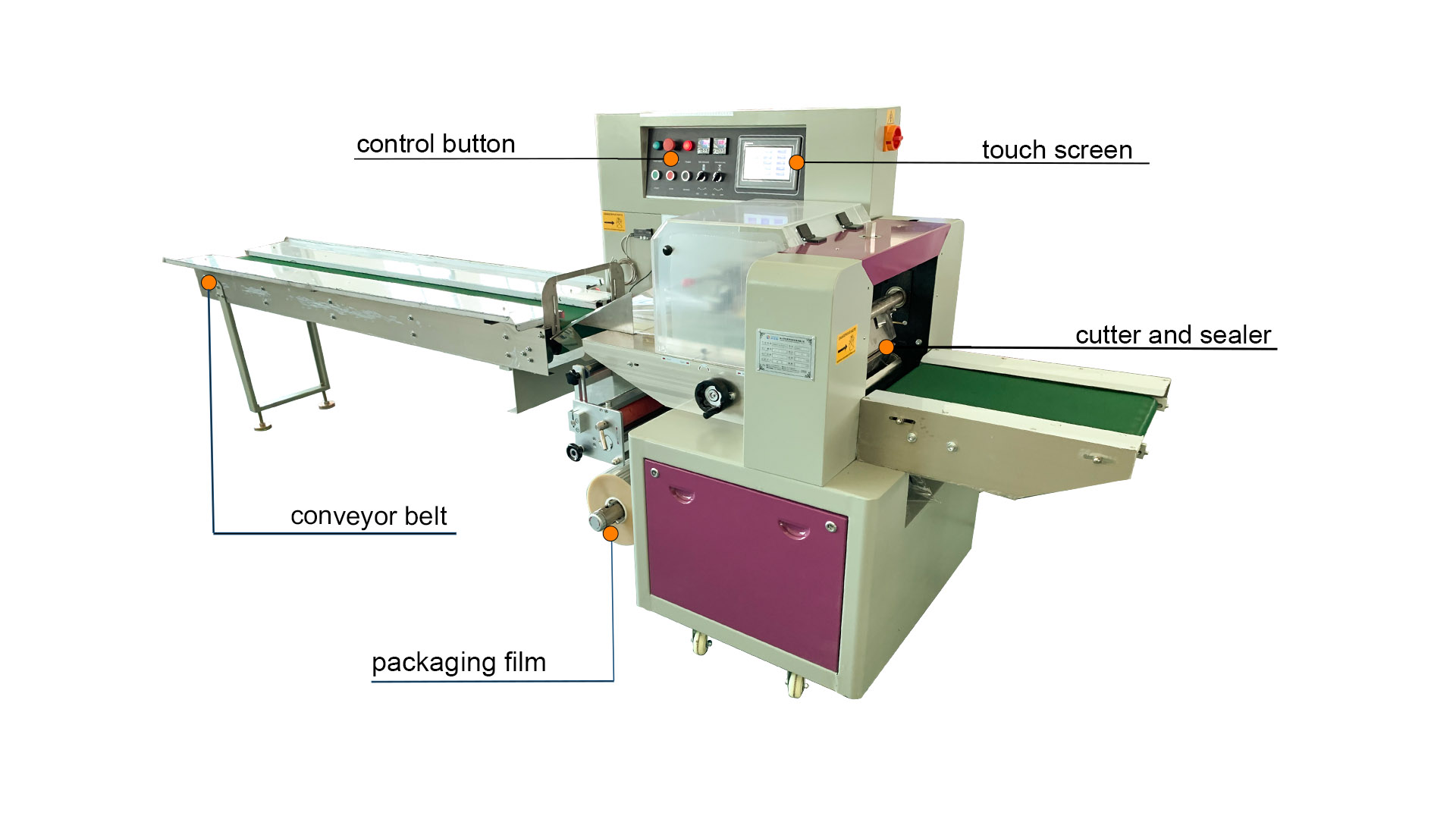

details machine.jpg

Item No.

UMEO-450X

Bag Length

120-280mm or 150-450mm ( if servo ,Not less 120mm)

Bag Width

60-210mm

 Film Width

450mm (Max.)

Product Height  80mm

Packing Speed

40-150mm/min
Film Roll Width 320mm (Max.)

Power

220V/380V AC 50HZ/60HZ,Single phase,2.7kw

Package Material

Aluminium film,OPP/CPP,OPP/PE,PET/PE,PE/PE etc

Total Cubic Meter

3.276 CBM

Gross Weight

633 kg

H.S.Code

8422.3030.90

Horizontal flow packing machine is suitable for kinds of different items package


Aluminium or complex plastic film can be worked by the horizontal packaging machinery and joint bag,punching pouch are available too.

sample bag.png

UMEO always pay more attention for packing machine every part,including the shipping package,with reinforced non-fumigation plywood box.




Q: What kinds of product does you company have ?

A:  UMEO has different machines,including vertical and flow packing machine;meanwhile,vertical packaging machinery mainly for granule package machine,liquid or sauce pack machine and powder packaging solution;



Q:  What is product your packing machine can pack?

A:  Our packing machine mainly pack Granule ( bean,rice,candy,hardware etc.); Liquid ( water,shampoo,jelly,soup etc) ; Powder ( flour,milk powder,coffee powder,detergent powder etc) and necessity or bread,vegetables,etc molding products by flow packing machinery.



Q: What is bag shape your packing machine can make ?

A: Usually back sealing bag ( pillow bag ),three-side sealing bag,four-side sealing bag,qual seal bag,gusset bag,triangle bag,linking bag etc.



Q: I know little about the packing machine before,How to use it ? Is it complex ?

 A: It is very simple we make sure you can use it easily as per our advice. As you can get any information that can help you to install and use the packing machine,such as a detailed instruction,a whole set design,a installation video,even our technician.



Q: How about your packing machine quality ? any certification you have ?

A: We have a strict Quality Control system which is from Design Dept.-Purchasing Dept.-Product Dept.-Quality Dept.-Packing Dept. ; eighty percent have over 8 year experience,and the left twenty percent has 5 year experience; Meanwhile our packing machine has International Standard CE certification which has passed the most important standard of MD and LVD at the same time.



Q: How to choose the suitable packing machine for my product ?

A: You just need to tell us about your packing product details,packing request that we will provide a reasonable advice and the D Graph for you; even we can provide some choices for you to get a best one.



Q: What is the process to order the packing machine ?

A: First: we will provide the most suitable and reasonable packing machine for you as per your request and offer you a best quotation; Second:we will arrange the production once get your confirmation and the payment advice;About 10-30 days later we will take the finished pictures and working video for you;meanwhile our Department of Quality Assurance will inspect it till make sure every part is no problem completely; then we pack and ship it,but usually you need to arrange the balance payment before shipment; Third: we deal with the Customs Clearance and provide the shipment document for Customs and you; After some time that you can get packing machine well.



Q: What is the after-sales and guarantee ?

A: First: we will assist you to install the packing machine and make sure it can work smoothly; Second: we will provide one year of maintenance and warranty period free of charge. The buyer will carry out the maintenance tasks and we will supply and ship the replacement for defective parts to the buyer free of charge, except the damage is caused by buyer
