tea bag in bag packing machine
SEND INQUIRY NOW

Tea Bag-in-Bag with Tag and String Packing Machine UMEO-16D

The inner and outer bag tea packing machine is a multi-functional packing line for tea bag; The inner bag and outer bag forming is finished at the same time, avoid direct contact with the packing material and improve working efficiency. Inner bag is made of filter paper with thread and tag attached, and outer bag is made of composite paper. The competitive advantage is tag attaching and outer bag making can adopt photoelectric positioning.Both inner and outer bag are three side sealing sachet ,with horizontal auto correction function and photocell eye positioning;the whole complete automatic packaging line includes: forming bag,filling,printing,counting (optional),tag and string making,sealing and output conveying;the bag size and the weight are adjustable as requested.

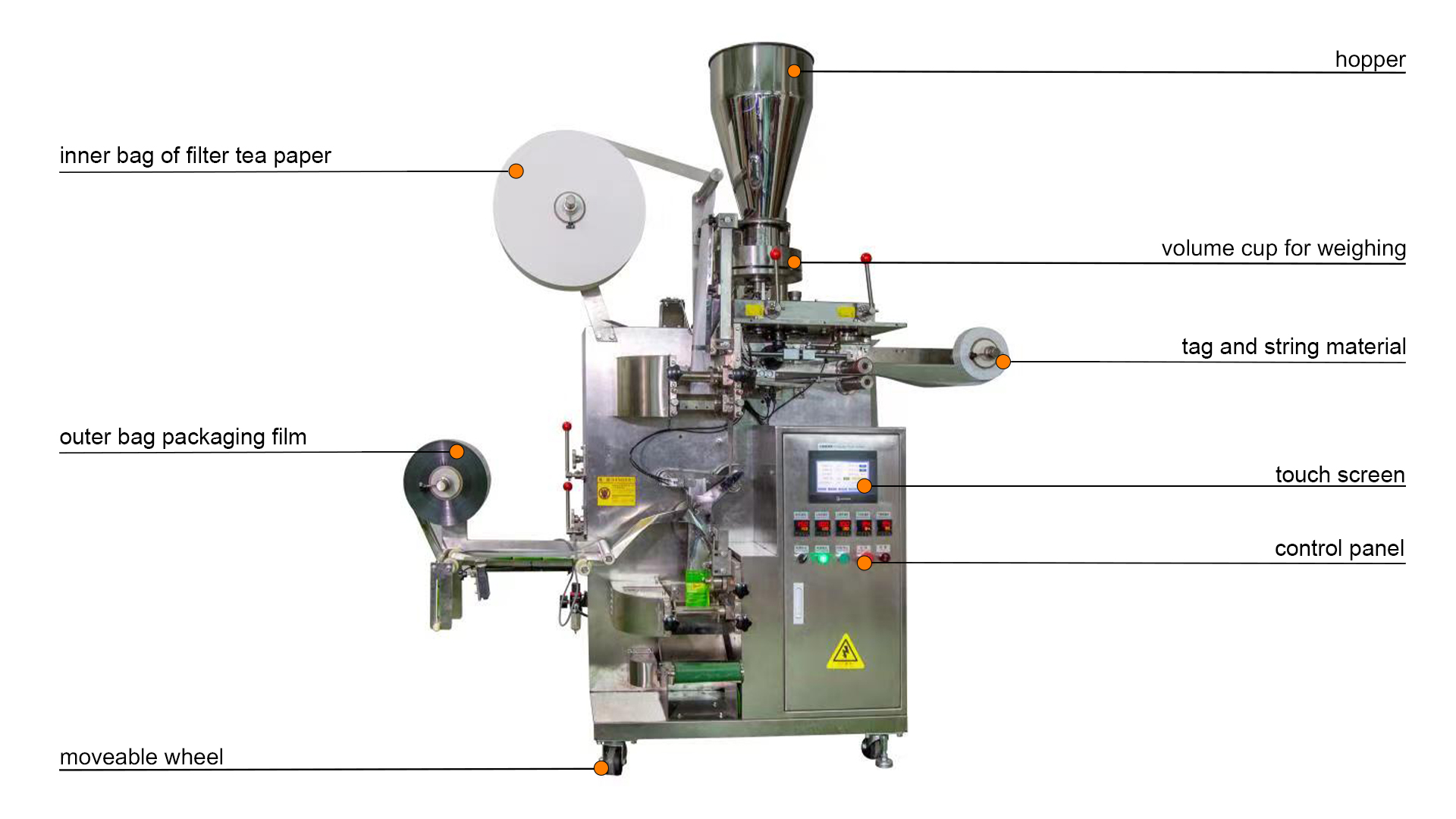

tea packing machinery.jpg

UMEO always pays more attention to the machine every part to make sure every client get get the best quality packaging machinery to increase your package capacity.

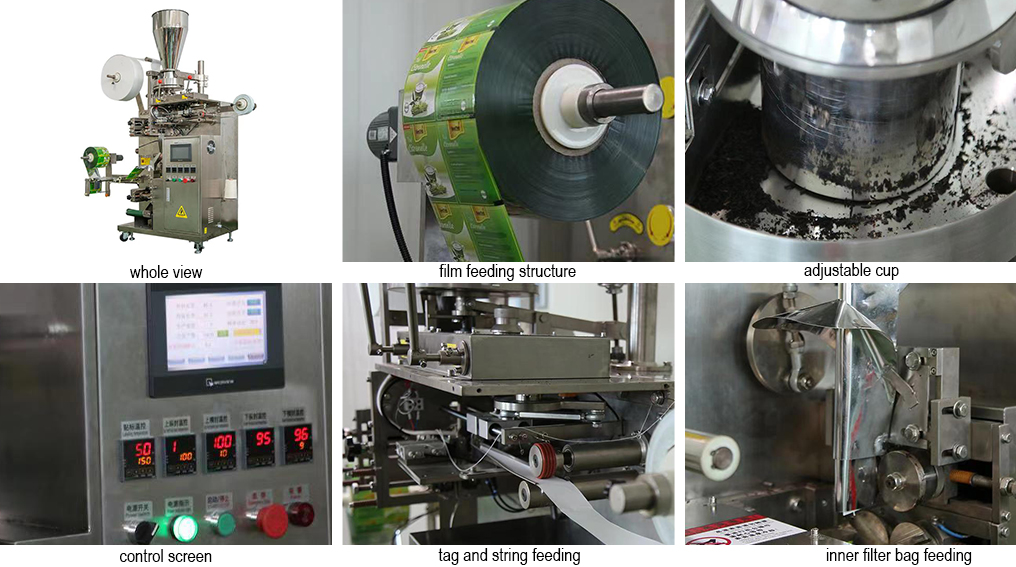

details machine.jpg

Item No.

UMEO-16D

Outer Bag Size

L: 80-120mm,W:70-90mm

Inner Bag Size

L:50-70mm,W: 50-80mm

Tag Size

L:20-40mm,W:40-55mm

String Size

155mm

Packing Speed

30-60 bag /min
Dosing  3-15ml

Power

220V AC 50H,Single phase,3.5kw

Package Material

Filter,cotton thread,tag paper,foil laminated foil etc

Total Cubic Meter

3.568 CBM

Gross Weight

535 kg

H.S.Code

8422.3030.90

Automatic tea packing machine is suitable for tea leaf,health tea,herb tea etc small grain or powder package

tea application.JPG

Aluminium or complex plastic film can be worked by this snacks packaging machinery and joint bag,punching pouch are available too.

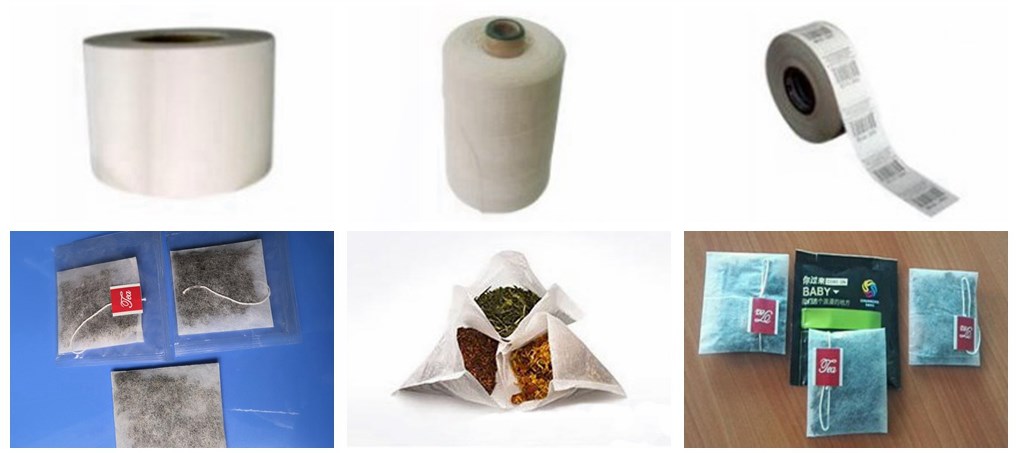

sample bag.JPG

UMEO always pay more attention for packing machine every part,including the shipping package,with reinforced non-fumigation plywood box.

Q: What kinds of product does you company have ?

A:  UMEO has different machines,including vertical and flow packing machine;meanwhile,vertical packaging machinery mainly for granule package machine,liquid or sauce pack machine and powder packaging solution;



Q:  What is product your packing machine can pack?

A:  Our packing machine mainly pack Granule ( bean,rice,candy,hardware etc.); Liquid ( water,shampoo,jelly,soup etc) ; Powder ( flour,milk powder,coffee powder,detergent powder etc) and necessity or bread,vegetables,etc molding products by flow packing machinery.



Q: What is bag shape your packing machine can make ?

A: Usually back sealing bag ( pillow bag ),three-side sealing bag,four-side sealing bag,qual seal bag,gusset bag,triangle bag,linking bag etc.



Q: I know little about the packing machine before,How to use it ? Is it complex ?

 A: It is very simple we make sure you can use it easily as per our advice. As you can get any information that can help you to install and use the packing machine,such as a detailed instruction,a whole set design,a installation video,even our technician.



Q: How about your packing machine quality ? any certification you have ?

A: We have a strict Quality Control system which is from Design Dept.-Purchasing Dept.-Product Dept.-Quality Dept.-Packing Dept. ; eighty percent have over 8 year experience,and the left twenty percent has 5 year experience; Meanwhile our packing machine has International Standard CE certification which has passed the most important standard of MD and LVD at the same time.



Q: How to choose the suitable packing machine for my product ?

A: You just need to tell us about your packing product details,packing request that we will provide a reasonable advice and the D Graph for you; even we can provide some choices for you to get a best one.



Q: What is the process to order the packing machine ?

A: First: we will provide the most suitable and reasonable packing machine for you as per your request and offer you a best quotation; Second:we will arrange the production once get your confirmation and the payment advice;About 10-30 days later we will take the finished pictures and working video for you;meanwhile our Department of Quality Assurance will inspect it till make sure every part is no problem completely; then we pack and ship it,but usually you need to arrange the balance payment before shipment; Third: we deal with the Customs Clearance and provide the shipment document for Customs and you; After some time that you can get packing machine well.



Q: What is the after-sales and guarantee ?

A: First: we will assist you to install the packing machine and make sure it can work smoothly; Second: we will provide one year of maintenance and warranty period free of charge. The buyer will carry out the maintenance tasks and we will supply and ship the replacement for defective parts to the buyer free of charge, except the damage is caused by buyer
